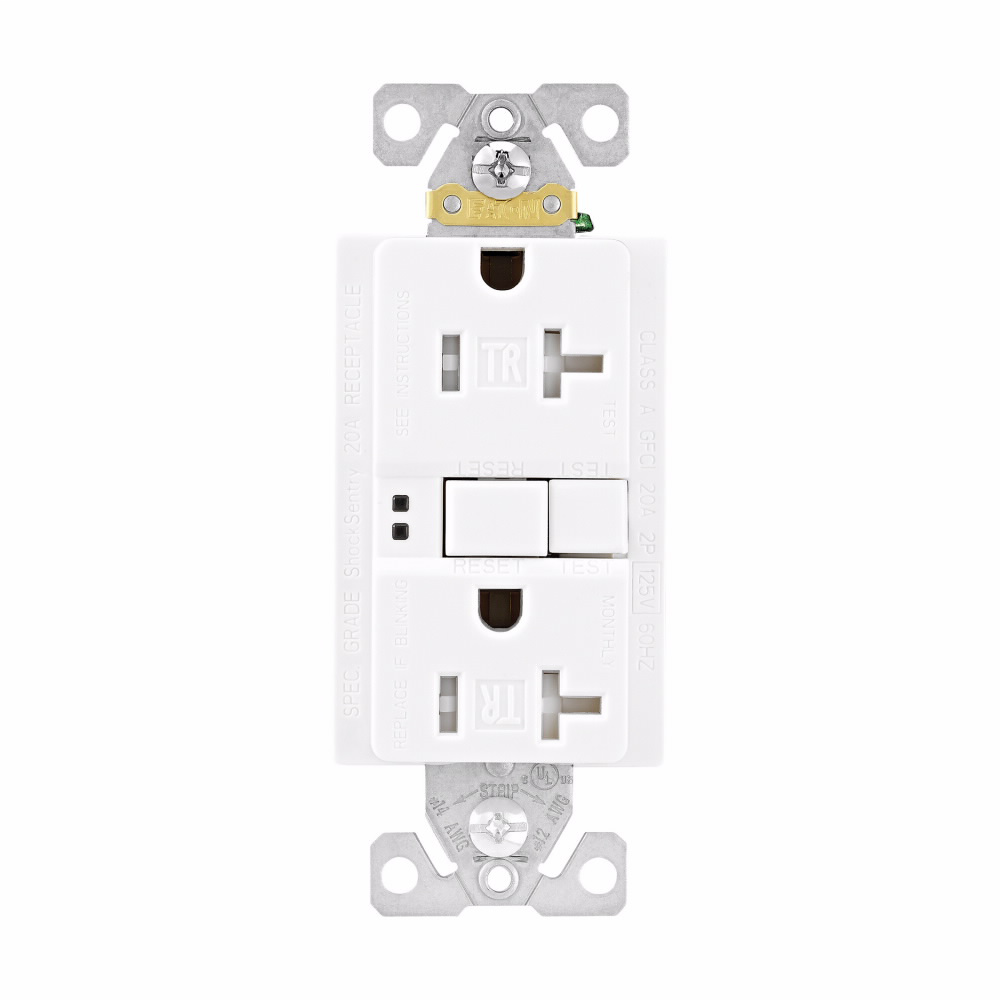

Eaton Wiring Devices TRSGF20W 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R White GFCI Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Usually available within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # TRSGF20W
Viking Electric Part # 80474

Specifications

  • Circuit Interrupter Type: GFCI
  • Contact Material: Brass
  • Nema Configuration: 5-20R
  • Environmental Conditions: Tamper resistant
  • Color: White
  • Device Type: Receptacle
  • Face/Body Material: PVC
  • Wiring Method: Back wire and side wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Voltage Rating: 125V
  • Amperage Rating: 20A

General

  • UPC: 032664739989
  • Product Length/Depth: 2.813 IN
  • Product Height: 4.625 IN
  • Product Width: 2 IN
  • Product Weight: .398 LB
  • Certifications: cULus Listed

Categories

Overview

UPC 03266473998
Long Description Specification grade tamper resistant duplex ground fault circuit interrupter receptacle with back and side wire. ArrowHart self-test GFCI receptacles are UL Listed and fully compliant with all of the latest UL943 Class A GFCI and UL498 requirements. The self-test GFCIs conduct an automatic test periodically to ensure GFCI protection. The device will trip and will not reset if GFCI protection is not available. Additionally, GFCIs incorporate a safety lock-out function to protect against mis-wired line-load connections and GFCI circuitry damage. Suitable in commercial and industrial areas like public bathrooms, break rooms and food service areas, the NEC requires GFCI receptacles.
GTiN 00032664739989
Length 2.813 in
Width 2 in
Color White
Voltage 125 Volt
Type Self-Test, Tamper-Resistant
Material Out Branch Circuit AFCI Receptacle
Applications Commercial
Height 4.625 in
Grade Specification
Weight .398 lb
Wire Type Grounding
Connection Type Grounding
Family Brand Name Eaton Wiring Devices
Amperage 20 Amp
Blade Dimensions 1.3 in W
Number of Poles 2 Pole
Number of Wires 3
Enclosure Tamper Resistant NEC Requiremants
Sub Brand Arrow Hart
