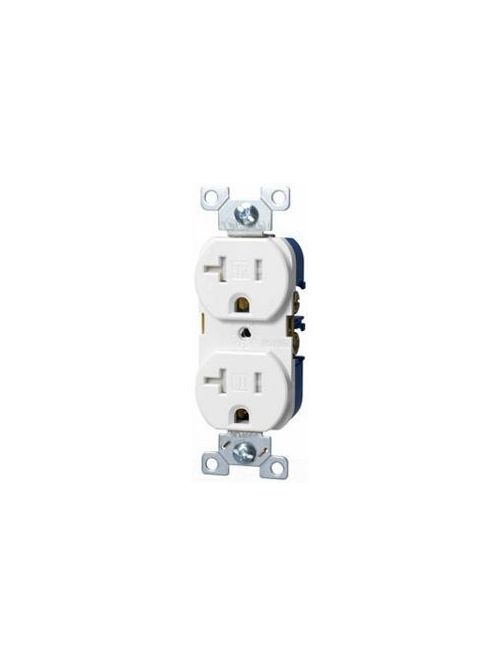

EWD TRBR20B-BXSP Recp TR Duplex 20A
Product image thumbnail 0
Product image thumbnail 1
64 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # TRBR20B-BXSP
Viking Electric Part # 57356

Specifications

  • Special Features: Tamper resistant
  • Mounting Type: Flush
  • Color: Brown
  • Device Type: Receptacle
  • Face/Body Material: Impact-resistant nylon face, PVC body
  • Wiring Method: Back and side
  • Material: PVC
  • Allowable Wire Size: #14-10 AWG
  • Amperage Rating: 20A
  • Number Of Poles: Two-pole
  • Contact Material: Brass
  • Type: Duplex
  • Device Grade: Commercial specification grade
  • Nema Configuration: 5-20R
  • Style Type: Standard
  • Design Type: Straight blade
  • Connection Type: Screw
  • Number Of Wires: Three-wire
  • Receptacle Type: Duplex
  • Voltage Rating: 125V
  • Application: Commercial

General

  • UPC: 032664668692
  • Product Length/Depth: 1.24 IN
  • Product Height: 4 IN
  • Product Width: .79 IN
  • Product Weight: .212 LB
  • Warranty: Refer to warranty document.
  • Certifications: cULus Listed

Overview

UPC 03266466869
Long Description Eaton commercial specification grade duplex receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Back and side, Brown, Brass, Impact-resistant nylon face, PVC body, 5-20R, Duplex, Screw, PVC, ED Box
GTiN 00032664668692
Length 1.24 in
Width .79 in
Color Brown
Voltage 125 Volt
Type Duplex
Insulation Type PVC
Material PVC,Polyvinyl Chloride
Applications NON-RESI RECEPTACLE
Mounting Type Flush
Height 4.19 in
Weight .212 lb
Wire Size 14-10 AWG
Connection Type Screw
Temperature Rating -20 To 60 C
Family Brand Name Arrow Hart Wiring
NEMA 5-20R
Amperage 20 Amp
Environmental Conditions Indoor
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
