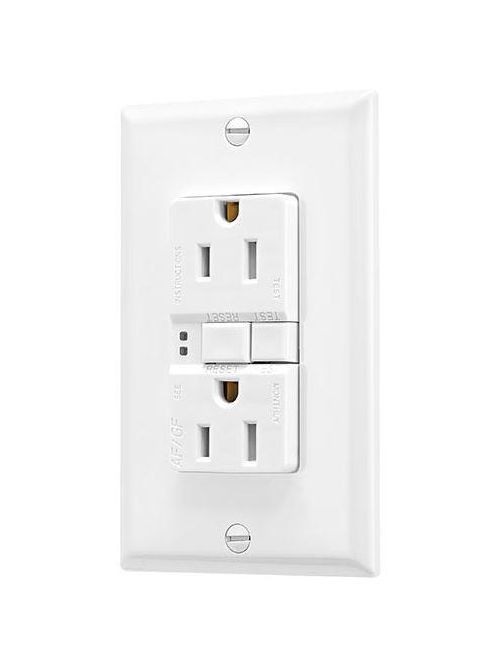

EWD TRAFGF15W AF/GF TR Duplex 15A 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
106 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # TRAFGF15W
Viking Electric Part # 168717

Specifications

  • Circuit Interrupter Type: AFGF
  • Contact Material: Brass
  • Nema Configuration: 5-15R
  • Environmental Conditions: Tamper resistant
  • Color: White
  • Device Type: Receptacle
  • Face/Body Material: PVC
  • Wiring Method: Back wire and side wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Voltage Rating: 125V
  • Amperage Rating: 15A

General

  • UPC: 032664747601
  • Product Length/Depth: 2.815 IN
  • Product Height: 4.625 IN
  • Product Width: 2.01 IN
  • Product Weight: .392 LB
  • Certifications: UL Listed

Categories

Overview

UPC 03266474760
Long Description Eaton AFGF receptacle,Tamper resistant,Self-test,#14 - 10 AWG,15A,Residential,Commercial,Flush,125 V,AFGF,Back and side wire,White,Brass,Receptacle,Tamper resistant,Polycarbonate,5-15R,Two-pole, three-wire, grounding
GTiN 00032664747601
Length 2.815 in
Width 2.01 in
Color White
Voltage 125 Volt
Type Residential
Applications AFCI
Height 4.625 in
Weight .392 lb
Family Brand Name Arrow Hart Wiring
Amperage 15 Amp
Sub Brand Eaton Wiring Devices
Material Thermoplastic
Conductor Size 14-10 AWG
Grade Residential
Wire Type Back and Side Wire
Temperature Rating -35 to 66 C
Grounding Grounding
Contact Material Brass
Dielectric Strength 2000 V
Blade Dimensions 1.28 in W x 1.27 in D x 4.2 in H
Environmental Conditions UL 94 Requirements, V2 Rated Flammability
Number of Poles 2 Pole
Number of Wires 3
