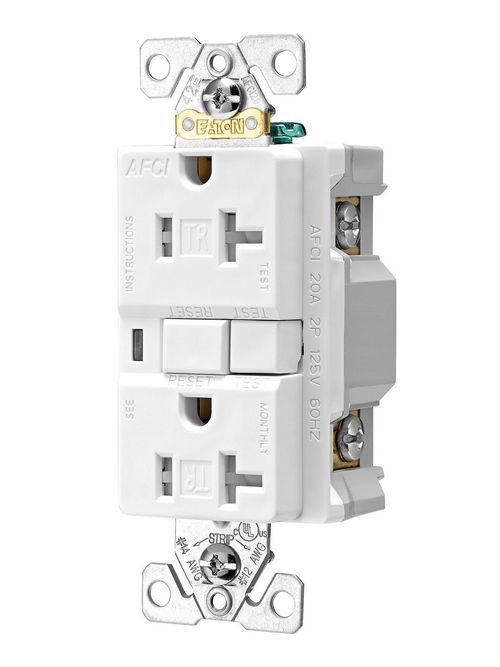

Eaton Wiring Devices TRAFCI20W 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R White AFCI Duplex Receptacle
Usually available within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # TRAFCI20W
Viking Electric Part # 57350

Specifications

  • Circuit Interrupter Type: AFCI
  • Contact Material: Brass
  • Special Features: Visual trip indicator light
  • Nema Configuration: 5-20R
  • Environmental Conditions: Tamper resistant
  • Color: White
  • Device Type: Receptacle
  • Face/Body Material: PVC
  • Wiring Method: Back wire and side wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Voltage Rating: 125V
  • Amperage Rating: 20A

General

  • UPC: 032664739538
  • Product Length/Depth: 2 IN
  • Product Height: 4.625 IN
  • Product Width: 4.813 IN
  • Product Weight: .37 LB
  • Warranty: 2 year limited
  • Certifications: cULus Listed

Overview

UPC 03266473953
Long Description Protects against arc faults in wiring resulting from damaged insulation and other causes that can lead to electrical fires. Outlet Branch Circuit (OBC) AFCI receptacles protect from series and parallel arcs downstream. Outlet Branch Circuit (OBC) AFCI receptacles also provide protection from upstream series arcs (no AFCI receptacle from any manufacturer can protect from upstream parallel arcs). Tamper resistant products comply with 2014 NEC Article 406.12 for all dwelling units. Meets and exceeds Short Circuit Testing and Underwriters Laboratories UL 1699A and UL 498 Safety standards. Ground termination with backwire clamp provides secure wiring and reduces installation time. Line side terminals are backed out and staked for fast installation. When downstream receptacles are wired from load side, a 20 amp feed-through rating offers full protection. Tri-combo head terminal and mounting screws.
GTiN 00032664739538
Length 2 in
Width 4.813 in
Color White
Voltage 120 Volt
Type AFCI,Duplex,Tamper Reisitant
Material PVC
Applications Commercial
Height 4.625 in
Weight .37 lb
Wire Type Grounding
Connection Type Grounding
Family Brand Name Eaton Wiring Devices
Receptacle Type Grounding
NEMA 5-20R
Environment Tamper Resistant
Contact Material Brass
Amperage 20 Amp
Blade Dimensions 3.3 in W
Wiring Method Back,Side
Number of Poles 2 Pole
Number of Wires 3
Device Type Receptacle
Enclosure Tamper Resistant NEC Requiremants
Sub Brand ASPIRE
