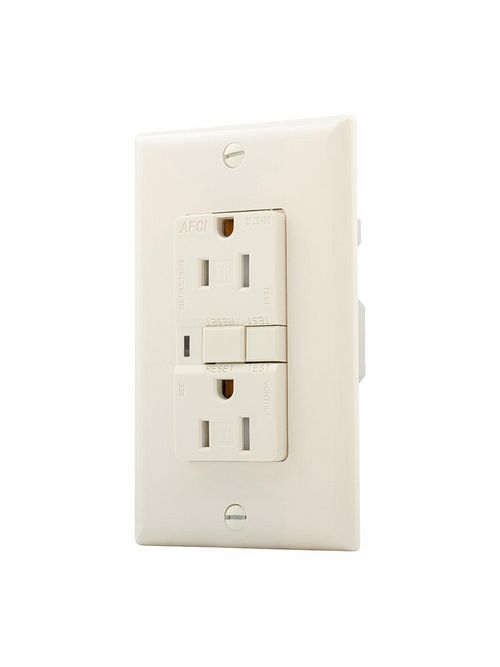

EWD TRAFCI15LA AFCI TR Duplex 15A 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
18 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # TRAFCI15LA
Viking Electric Part # 57344

Specifications

  • Circuit Interrupter Type: AFCI
  • Contact Material: Brass
  • Special Features: Visual trip indicator light
  • Nema Configuration: 5-15R
  • Environmental Conditions: Tamper resistant
  • Color: Light almond
  • Device Type: Receptacle
  • Face/Body Material: PVC
  • Wiring Method: Back wire and side wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Voltage Rating: 125V
  • Amperage Rating: 15A

General

  • UPC: 032664739446
  • Product Length/Depth: 2 IN
  • Product Height: 4.625 IN
  • Product Width: 4.813 IN
  • Product Weight: .37 LB
  • Warranty: 2 year limited
  • Certifications: cULus Listed

Overview

UPC 03266473944
Long Description Protects against arc faults in wiring resulting from damaged insulation and other causes that can lead to electrical fires. Outlet Branch Circuit (OBC) AFCI receptacles protect from series and parallel arcs downstream. Outlet Branch Circuit (OBC) AFCI receptacles also provide protection from upstream series arcs (no AFCI receptacle from any manufacturer can protect from upstream parallel arcs). Tamper resistant products comply with 2014 NEC Article 406.12 for all dwelling units. Meets and exceeds Short Circuit Testing and Underwriters Laboratories UL 1699A and UL 498 Safety standards. Ground termination with backwire clamp provides secure wiring and reduces installation time. Line side terminals are backed out and staked for fast installation. When downstream receptacles are wired from load side, a 20 amp feed-through rating offers full protection. Tri-combo head terminal and mounting screws.
GTiN 00032664739446
Length 2 in
Width 4.813 in
Color Light Almond
Voltage 125 Volt
Type Tamper-Resistant
Applications For Indoor Use
Height 4.625 in
Weight .37 lb
Family Brand Name Eagle Electric
Amperage 15 Amp
Sub Brand Arrow Hart
Material PVC
Mounting Type Wall
Connection Type Back and Side Wired
Temperature Rating -35 to 66 C
Grounding Self
Contact Material Brass
Dielectric Strength 2000 V
Blade Dimensions 2 in L x 4.81 in W x 4.62 in H
Environmental Conditions UL 94-V2 Flammability Rating
Number of Poles 2 Pole
Number of Wires 3
