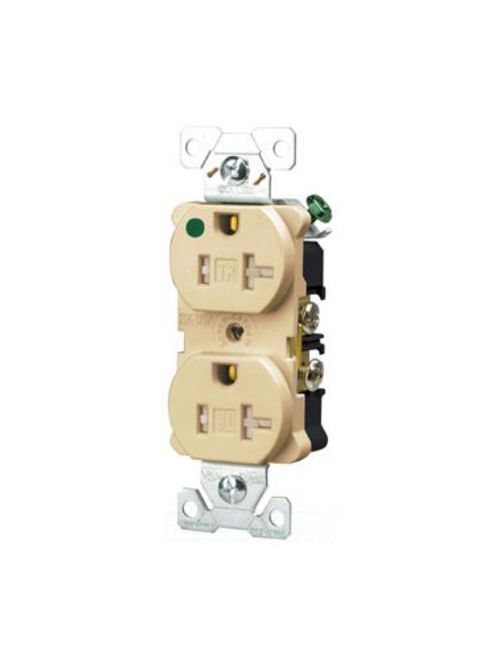

EWD TR8300V Recp HG TR Dup 20A 125V
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
10 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # TR8300V
Viking Electric Part # 57332

Specifications

  • Height: 4.19 IN
  • Length: 1.3 IN
  • Width: .84 IN
  • Type: Duplex
  • Allowable Wire Size: #14 to 10 AWG
  • Amperage Rating: 20A
  • Mounting Type: Flush
  • Voltage Rating: 125V
  • Wiring Method: Back and side
  • Color: Ivory
  • Contact Material: Brass
  • Design Type: Receptacle
  • Nema Configuration: 5-20R
  • Number Of Poles: Two-pole
  • Number Of Wires: Three-wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Style Type: Standard
  • Connection Type: Screw
  • Material: Nylon

Overview

UPC 03266455462
Long Description Eaton Arrow Hart heavy-duty hospital grade duplex receptacle, #14-10 AWG, 20A, Healthcare, Flush, 125V, Back and side, Ivory, Brass, Impact-resistant nylon face, PVC body, 5-20R, Duplex, Screw, Nylon, Core pack
GTiN 00032664554629
Length 1.3 in
Width .84 in
Color Ivory
Voltage 125 Volt
Type Tamper-Resistant, Impact-Resistant, Heavy Duty
Insulation Type PC
Material Nylon
Applications For Industrial Use
Mounting Type Flush
Height 4.19 in
Weight .247 lb
Wire Size 14-12 AWG
Connection Type Back and Side Wired
Temperature Rating -20 To 60 C
Family Brand Name Eaton
NEMA 5-20R
Amperage 20 Amp
Environmental Conditions Hospital Grade
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
Conductor Size 14-10 AWG
Grade Hospital
Contact Material Brass
Blade Dimensions 1.3 in L x 0.84 in W x 4.19 in H
