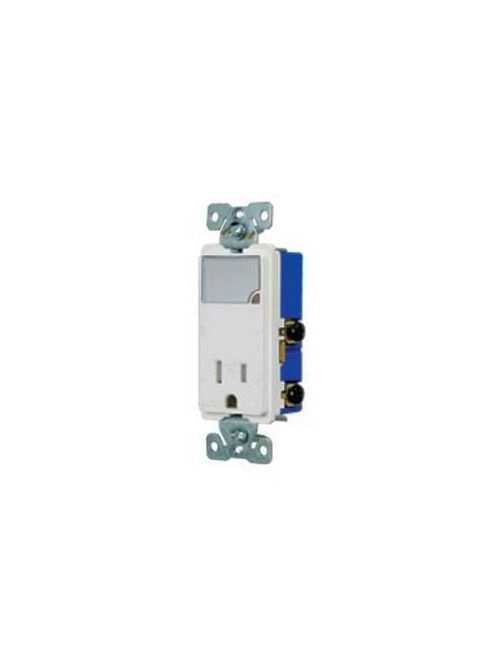

Arrow Hart Wiring TR7735LA-BOX 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Light Almond LED Night Light with Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Product image thumbnail 4
6 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # TR7735LA-BOX
Viking Electric Part # 57308

Specifications

  • Special Features: Tamper resistant
  • Mounting Type: Flush
  • Color: Light almond
  • Wiring Method: Back and side
  • Material: Thermoplastic
  • Allowable Wire Size: #14-12 AWG
  • Combination Type: Night light
  • Amperage Rating: 15A
  • Contact Material: Brass
  • Nema Configuration: 5-15R
  • Design Type: Receptacle
  • Style: Decorator
  • Receptacle Type: Two-pole, three-wire, grounding
  • Voltage Rating: 120/277 V

General

  • UPC: 032664727665
  • Product Length/Depth: 2 IN
  • Product Height: 4.25 IN
  • Product Width: 2 IN
  • Product Weight: .239 LB
  • Certifications: cULus Listed

Overview

UPC 03266472766
Long Description Eaton combination nightlight with receptacle, Tamper resistant, #14-12 AWG, 15A, Flush mount, 120/277V, Back and side wiring, Light almond, Brass, 5-15R, Two-pole, three-wire, grounding, Decorator, Thermoplastic
GTiN 00032664727665
Length 2 in
Width 2 in
Color Light Almond
Voltage 120/277 Volt
Type Residential
Material Thermoplastic
Applications Combination Device Night Light
Height 4.25 in
Weight .239 lb
Standard UL
Connection Type Screw
Wattage 1 Watt
Family Brand Name Eaton
Actuator Night Light
Contact Configuration Combo Switch
Amperage 15 Amp
Number of Poles 2 Pole
Enclosure Night Light Plug
Action Switch
Sub Brand Eaton Wiring Devices
