EWD TR5797 TR Fl Box Assy Sgl Rec 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
35 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # TR5797
Viking Electric Part # 57284

Specifications

  • Weight: 1.425 LB
  • Allowable Wire Size: #14 to 10 AWG
  • Height: 4.5 IN
  • Amperage Rating: 15A
  • Length: 2.75 IN
  • Voltage Rating: 125V
  • Width: 3.5 IN
  • Wiring Method: Side
  • Color: Brass
  • Design Type: Receptacle
  • Nema Configuration: 5-15R
  • Number Of Poles: Two-pole
  • Number Of Wires: Three-wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Style Type: Single
  • Material: Thermoplastic

Certifications

  • cULus Listed

Categories

Overview

UPC 03266472604

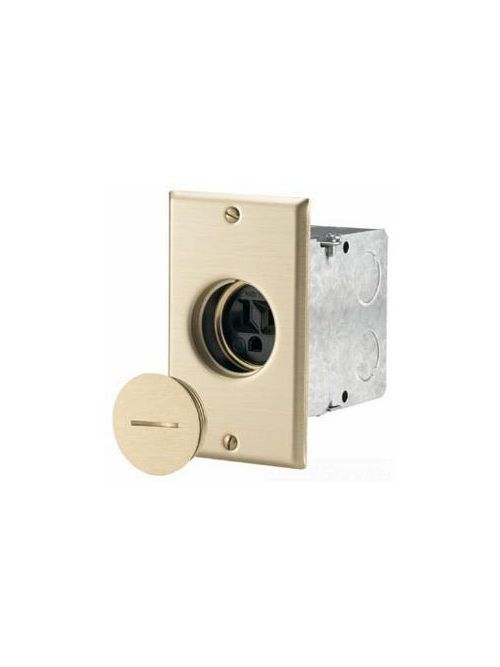

Long Description Eaton commercial specification grade single receptacle,#14-10 AWG,15A,Commercial,Floor,Recessed,125V,Back and side,Brass,Brass,Impact-resistant thermoplastic face and back body,Brass floor box,5-15R,Single,Screw,Thermoplastic,Core pack
GTiN 00032664726040
Length 2.75 in
Width 3.5 in
Color Brass
Voltage 125 Volt
Type Single
Insulation Type Impact Resistant Thermoplastic
Material Thermoplastic
Applications INDUSTRIAL RECEPTACLES
Mounting Type Flush
Height 4.5 in
Weight 1.425 lb
Wire Size 10 AWG
Connection Type Screw
Family Brand Name Eaton
NEMA 5-15R
Amperage 15 Amp
Environmental Conditions Indoor
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
