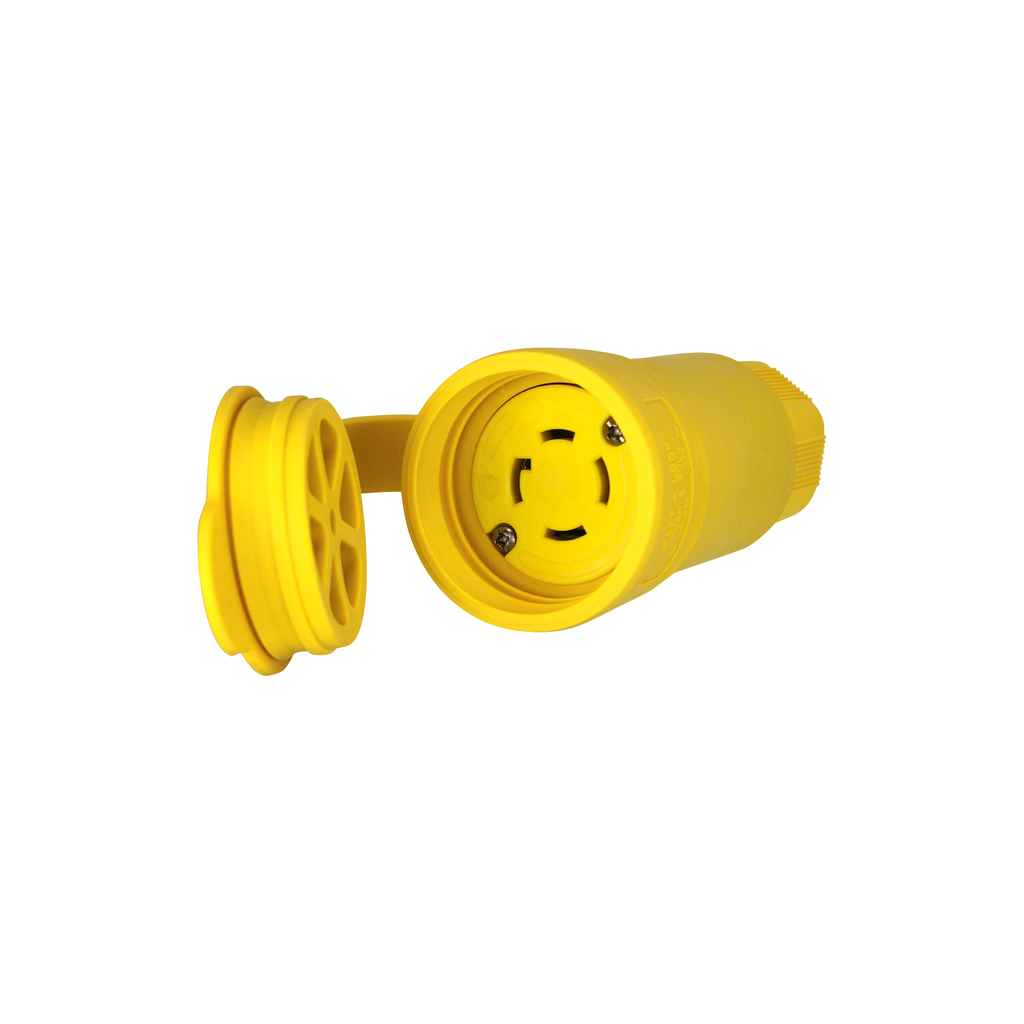

CONN WT 30A 250V 3PH 3P4W H/L YL
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually available within 8 to 12 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # L1530CW
Viking Electric Part # 39969

Specifications

  • Special Features: Watertight
  • Color: Yellow
  • Face/Body Material: Nylon
  • Wiring Method: Back
  • Material: Santoprene thermoplastic elastomeric
  • Allowable Wire Size: #18-10 AWG
  • Amperage Rating: 30A
  • Number Of Poles: Three-pole
  • Contact Material: Nickel-plated brass
  • Type: Locking connector
  • Device Grade: Extra heavy duty industrial specification grade
  • Nema Configuration: L15-30
  • Design Type: Watertight locking connector
  • Environmental Resistance: NEMA 4, NEMA 4X, NEMA 6, NEMA 6P, IP 67
  • Number Of Wires: Four-wire, grounding
  • Voltage Rating: 3Ø 250 V
  • Cord Diameter: 0.43 to 1.15 in
  • Degree of Protection: IP67
  • Application: Industrial

General

  • UPC: 040893642116
  • Product Length/Depth: 6.75 IN
  • Product Height: 3.75 IN
  • Product Width: 4.25 IN
  • Product Weight: 1.025 LB
  • Warranty: Refer to warranty document.
  • Compliances: RoHS Compliant
  • Certifications: UL Listed

Categories

Overview

UPC 04089364211
Long Description Eaton Arrow Hart watertight locking connector, #18-10 AWG, 30A, Industrial, 250V, Back wiring, Yellow, Steel, Watertight, L15-30, Three-pole, Four-wire, Santoprene thermoplastic elastomeric, 0.43 to 1.15 in, IP67
GTiN 00040893642116
Length 6.75 in
Width 4.25 in
Color Yellow
Voltage 250 Volt
Type Locking Connector
Material Santoprene Thermoplastic Elastomeric
Applications ELASTOMERIC PRODUCTS
Height 3.75 in
Weight 1.025 lb
Wire Size 18-10 AWG
Cord Range 0.43 - 1.15 in
Connection Type Screw
Family Brand Name Eaton
NEMA L15-30
Number of Phases 3 Phase
Contact Material Steel
Amperage 30 Amp
IP Rating IP67
Cord Size 0.43 - 1.15 in
Wiring Method Back
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Eaton Wiring Devices
