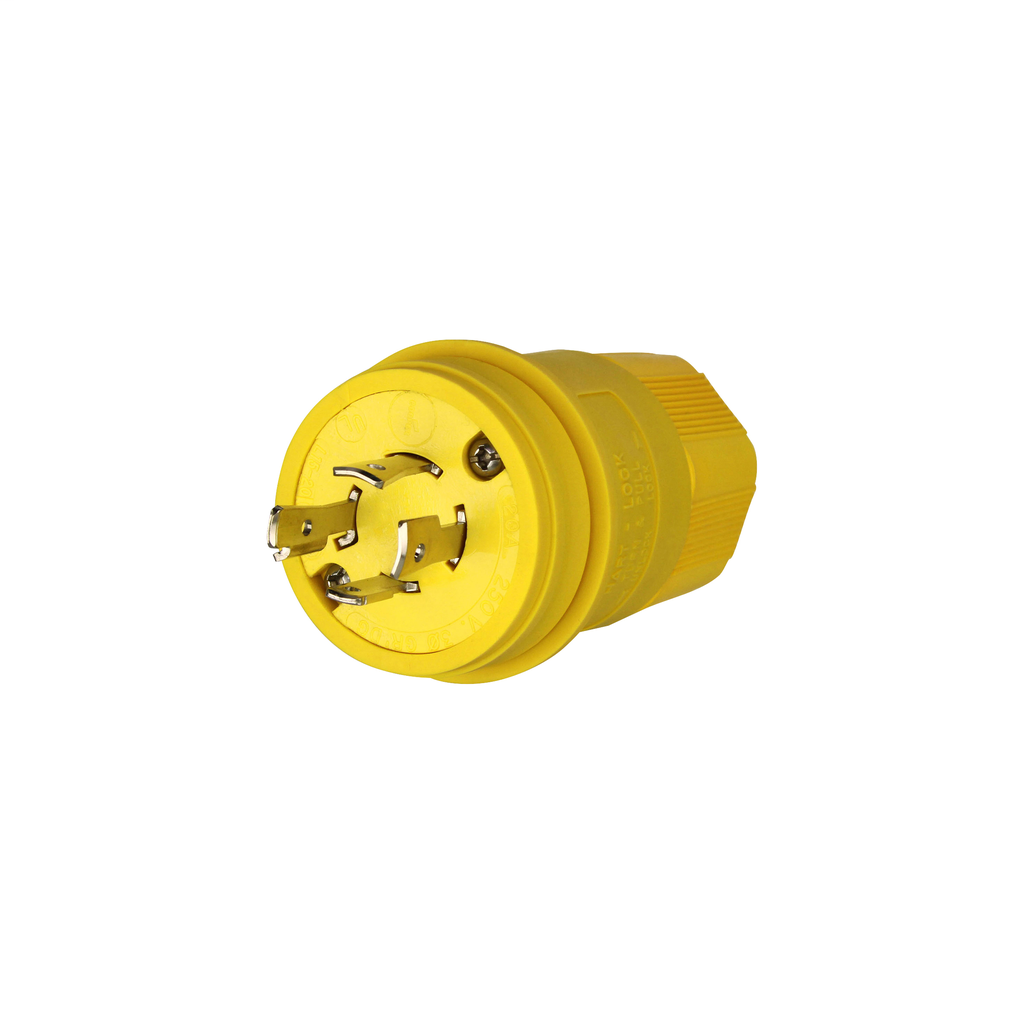

Arrow Hart Wiring L1520PW 20 Amp 250 VAC 3-Phase 3-Pole 4-Wire NEMA L15-20 Yellow Watertight Locking Plug
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually available within 6 to 8 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # L1520PW
Viking Electric Part # 39964

Specifications

  • Height: 3.15 IN
  • Length: 1.74 IN
  • Width: 1.85 IN
  • Weight: .2 LB
  • Special Features: #REF!
  • Allowable Wire Size: #18-10 AWG
  • Amperage Rating: 20A
  • Application: Industrial
  • Voltage Rating: 250V
  • Wiring Method: Back
  • Color: Yellow
  • Contact Material: Steel
  • Environmental Resistance: Watertight
  • Nema Configuration: L15-20
  • Number Of Poles: Three-pole
  • Number Of Wires: Four-wire
  • Material: Santoprene
  • Cord Diameter: 0.36 to 0.84 in
  • Degree of Protection: IP67

Categories

Overview

UPC 04089364204
Long Description Eaton Arrow Hart watertight locking plug, #18-10 AWG, 20A, Industrial, 250V, Back wiring, Yellow, Steel, Watertight, L15-20, Three-pole, Four-wire, Santoprene, 0.36 to 0.84 in, IP67
GTiN 00040893642048
Length 1.74 in
Width 1.85 in
Color Yellow
Voltage 250 Volt
Type Industrial
Material Santoprene
Applications ELASTOMERIC PRODUCTS
Height 3.15 in
Weight .2 lb
Family Brand Name Eaton
Amperage 20 Amp
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Eaton Wiring Devices
