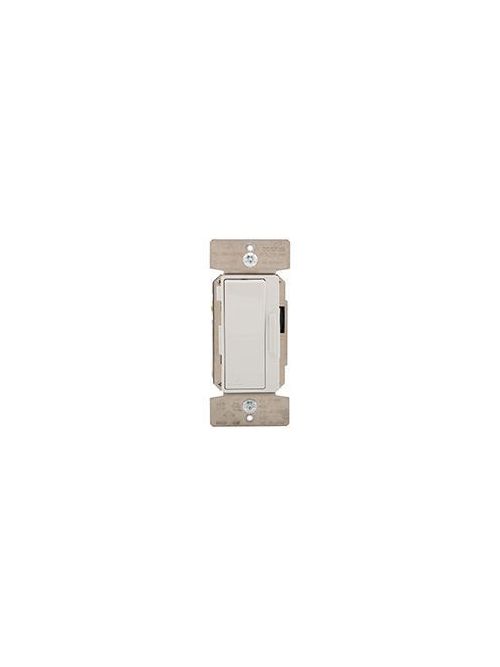

Eaton Wiring Devices DF10P-C2 1200 W 120 VAC 1-Pole 3-Way Light Almond/Ivory/White LED/CFL Decorator Dimmer
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
180 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # DF10P-C2
Viking Electric Part # 29411

Specifications

  • Special Features: Preset feature
  • Switch Type: Single-pole, three-way
  • Load Type: LED, FLR
  • Color: Light almond, white, ivory
  • Wiring Method: Back and side
  • Wattage: 1200W, 1660W
  • Allowable Wire Size: #14 - 12 AWG
  • Type: Dimmer
  • Environmental Conditions: Indoor
  • Frequency Rating: 60 Hz
  • Connection Type: Screw terminals
  • Illumination: 1000 sq ft coverage
  • Voltage Rating: 120/277 V
  • Actuator: Slide

General

  • UPC: 032664736834
  • Product Length/Depth: 2.1 IN
  • Product Height: 5.9 IN
  • Product Width: 3.8 IN
  • Product Weight: .283 LB
  • Certifications: cULus Listed

Categories

Overview

UPC 03266473683
Long Description Decorator dimmer with back and side wire. Preset feature allows user to return to previous light setting when turning lights on. Integrated linear slide control for easy, precise operation. Device can be wired into either 3-way location (load side or line side). Neutral is not required for installation of device. Replaces a standard switch and offers dimmer capabilities. Square law dimming perceived dimming level is proportional to the slider position. Power failure memory. Electrostatic discharge protection. Precise colour matching. Compatible with any decorator wallplate. For use with 1200/1600 W of dimmable LED or fluorescent.
GTiN 00032664736834
Length 2.1 in
Width 3.8 in
Color Ivory,Light Almond,White
Voltage 120/277 Volt
Type Dimmer
Applications Lighting Controls
Height 5.9 in
Weight .283 lb
Frequency 60 Hz
Family Brand Name Eaton Wiring Devices
Actuator Slide
Sub Brand Eaton Wiring Devices
