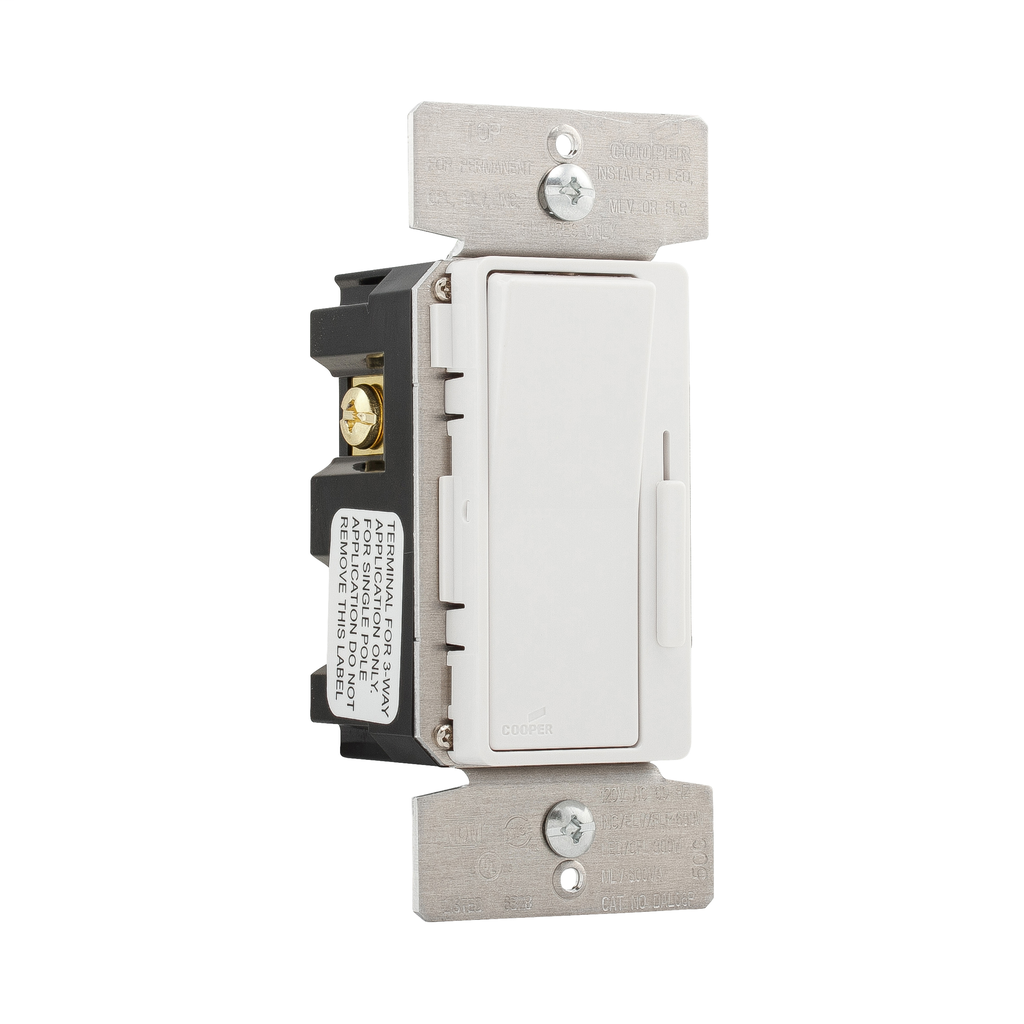

Arrow Hart Wiring DAL06P-C5 300 W 120 VAC 1-Pole 3-Way Black/White/Gray LED/CFL Decorator Dimmer
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually available within 6 to 8 Days
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # DAL06P-C5
Viking Electric Part # 29199

Specifications

  • Special Features: Preset feature
  • Type: Dimmer
  • Allowable Wire Size: #14 - 12 AWG
  • Voltage Rating: 120V
  • Wiring Method: Back and side
  • Actuator: Slide
  • Connection_Type: Screw terminals
  • Color: Black, white, gray
  • Design Type: Incandescent, halogen, magnetic low-voltage
  • Environmental Conditions: Indoor
  • Frequency Rating: 60 Hz
  • Load Type: LED, CFL, incandescent, halogen, FLR, MLV, ELV
  • Switch Type: Single-pole, three-way multi-location
  • Material: Polycarbonate
  • Wattage: 600W
  • Height: 5.39 IN
  • Length: 3.31 IN
  • Width: 2.84 IN
  • Weight: .28 LB

Certifications

  • cULus Listed
  • NOM

Categories

Overview

UPC 03266473149
Long Description Eaton decorator dimmer, Preset feature, #14-12 AWG, 120V, Bck and sd wiring, Slide actuator, Screw term conn, Black, wht, gray, Indoor, 60 Hz, LED, CFL, incand, halo, FLR, MLV, ELV, 1-pole, 3-way, multi-locat, Polycarb housing, 600W 731495
GTiN 00032664731495
Length 3.31 in
Width 2.84 in
Color Black/White/Gray
Operating Temperature 0 to 40 C
Voltage 120 Volt
Type 3-Way
Material Polycarbonate
Applications For Residential, Commercial Use
Mounting Type Wall
Height 5.39 in
Weight .28 lb
Wire Size 14-12 AWG
Frequency 60 Hz
Connection Type Screw Terminals
Wattage 600 Watt
Switch Type Single-pole,Three-way Multi-location
Family Brand Name Eaton
Environment Indoor
Actuator Slide
Wiring Method Back,Side
Environmental Conditions Indoor
Number of Poles 1 Pole
Load Type CFL/LED
Sub Brand Eaton Wiring Devices
Finish Gloss
Temperature Rating -20 to 70 C
Blade Dimensions 4.2 in L x 1.8 in W x 1.29 in D
Action On/Off
