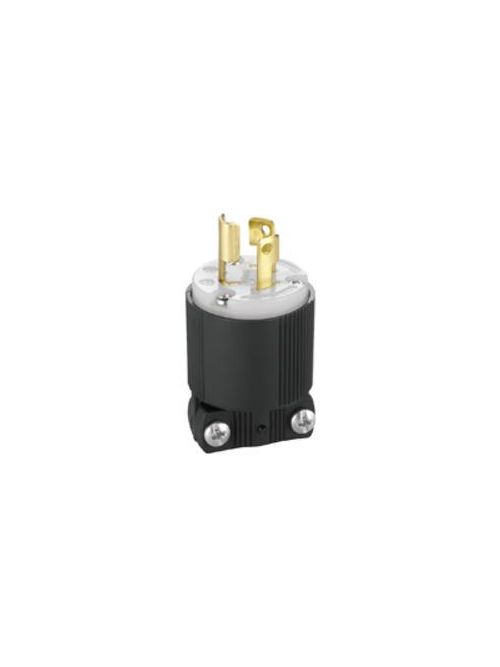

EWD CWL715P Plug 15A 277V 2P3W H/L
318 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # CWL715P
Viking Electric Part # 28916

Specifications

  • Special Features: Safety grip locking flanged outlet
  • Color: Black, white
  • Face/Body Material: Nylon
  • Wiring Method: Back
  • Material: Nylon
  • Allowable Wire Size: #16-12 AWG
  • Amperage Rating: 15A
  • Number Of Poles: Two-pole
  • Contact Material: Brass
  • Type: Locking plug
  • Device Grade: Extra heavy duty industrial specification grade
  • Nema Configuration: L7-15
  • Design Type: Safety grip
  • Number Of Wires: Three-wire, grounding
  • Operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Voltage Rating: 277 V
  • Cord Diameter: 0.33-0.66 in (8.4-16.7mm)
  • Application: Industrial

General

  • UPC: 040893678122
  • Product Length/Depth: 4.25 IN
  • Product Height: 1.75 IN
  • Product Width: 2 IN
  • Product Weight: .4 LB
  • Warranty: Refer to warranty document.
  • Compliances: Federal Specifications Classification W-C375
  • Certifications: cULus Listed

Overview

UPC 04089367812
Long Description Eaton safety grip locking plug, #16-12 AWG, 15A, Industrial, 277V, Back wiring, Black, white, Safety grip, L7-15, Two-pole, Three-wire, Nylon, 0.38 to 1 in, -40° to 60°C
GTiN 00040893678122
Length 4.25 in
Width 2 in
Color Black,White
Operating Temperature -40 To 140 F
Voltage 277 Volt
Type Locking Plug
Material Nylon
Applications LOCKING DEVICES
Height 1.75 in
Weight .4 lb
Wire Size 16-12 AWG
Cord Range 0.33 - 0.66 in
Connection Type Screw
Family Brand Name Eaton
NEMA L7-15
Amperage 15 Amp
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
