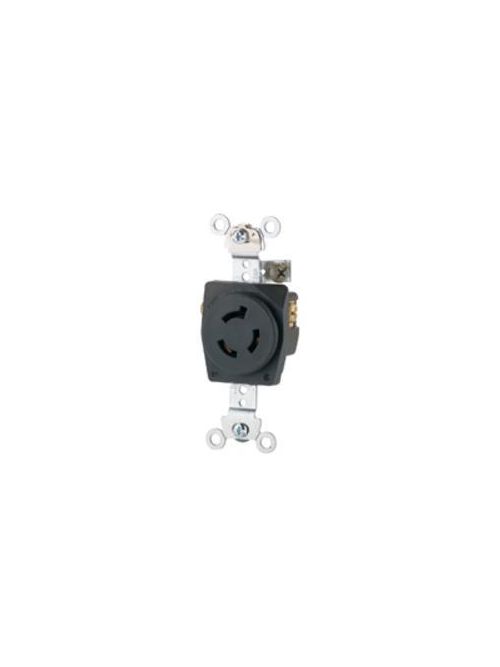

EWD CWL615R Recp Single 15A 250V 2P
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
117 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # CWL615R
Viking Electric Part # 28913

Specifications

  • Special Features: Safety grip locking plug
  • Color: Black
  • Face/Body Material: Glass filled Nylon
  • Wiring Method: Back and side
  • Material: Glass-filled Nylon
  • Allowable Wire Size: #14-8 AWG
  • Amperage Rating: 15A
  • Number Of Poles: Two-pole
  • Contact Material: Brass
  • Type: Locking receptacle
  • Device Grade: Extra heavy duty industrial specification grade
  • Nema Configuration: L6-15
  • Design Type: Single receptacle
  • Number Of Wires: Three-wire, grounding
  • Receptacle Type: Locking
  • Operating Temperature: -40°C to 115°C (-40°F to 239°F)
  • Voltage Rating: 250V
  • Application: Industrial

General

  • UPC: 040893676869
  • Product Length/Depth: 1.54 IN
  • Product Height: 4.04 IN
  • Product Width: .82 IN
  • Product Weight: .25 LB
  • Compliances: RoHS Compliant
  • Certifications: CSA certified

Categories

Overview

UPC 04089367686
Long Description Industrial grade single receptacle made of glass-filled nylon with back and side wire. It has 14 to 10 AWG terminal accommodation. Designed and built with superior materials for long lasting performance.
GTiN 00040893676869
Length 1.54 in
Width .82 in
Color Black
Operating Temperature -40 To 115 C
Voltage 250 Volt
Type Safety Grip
Material Glass Filled Nylon
Applications For Industrial Use
Height 4.04 in
Weight .25 lb
Wire Size 14-10 AWG
Connection Type Back and Side Wired
Temperature Rating -40 to 115 C
Family Brand Name Arrow Hart Wiring
NEMA L6-15
Amperage 15 Amp
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
Conductor Size 14-8 AWG
Grade Industrial
Blade Dimensions 4-1/4 in L x 2 in W x 2 in H
