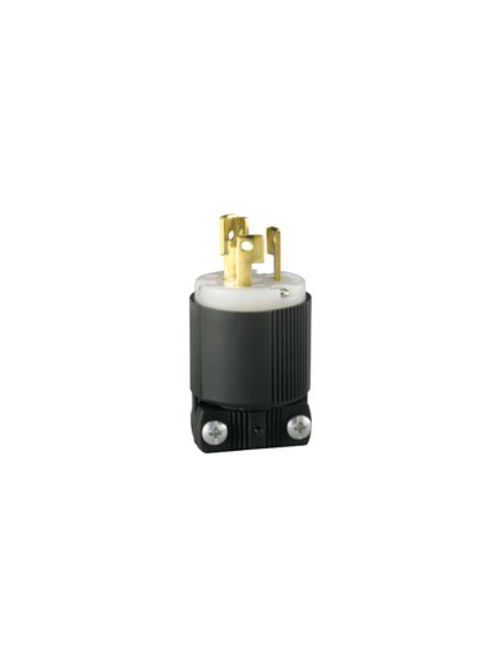

EWD CWL515P Plug 15A 125V 2P3W H/L
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
247 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # CWL515P
Viking Electric Part # 28907

Specifications

  • Height: 3.81 IN
  • Length: 2.47 IN
  • Width: 2.45 IN
  • Special Features: #REF!
  • Allowable Wire Size: #16-12 AWG
  • Amperage Rating: 15A
  • Application: Industrial
  • Voltage Rating: 125V
  • Wiring Method: Back
  • Color: Black, white
  • Design Type: Safety grip
  • Nema Configuration: L5-15
  • Number Of Poles: Two-pole
  • Number Of Wires: Three-wire
  • Material: Nylon
  • Cord Diameter: 0.38 to 1 in
  • Operating Temperature: -40° to 60°C

Categories

Overview

UPC 04089367798
Long Description Industrial grade plug made of nylon with side wire, safety grip straight body. It has 16 to 12 AWG terminal accommodation. Superior design and performance make ArrowHart's devices the ideal choice for industrial applications.
GTiN 00040893677989
Length 2.47 in
Width 2.45 in
Color Black,White
Operating Temperature -40 To 60 C
Voltage 125 Volt
Type Industrial Grade, Straight
Material Nylon
Applications For Industrial Use
Height 3.81 in
Weight .15 lb
Wire Size 16-12 AWG
Cord Range 0.33 - 0.66 in
Connection Type Screw
Family Brand Name Eaton
NEMA L5-15
Amperage 15 Amp
Cord Size 0.38 - 1 in
Wiring Method Back
Environmental Conditions -40 To 60 C
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Arrow Hart, Safety Grip
Conductor Size 16-12 AWG
Mounting Type Screw
Temperature Rating -40 to 60 C
Blade Dimensions 1-1/2 in dia x 2.06 in L
