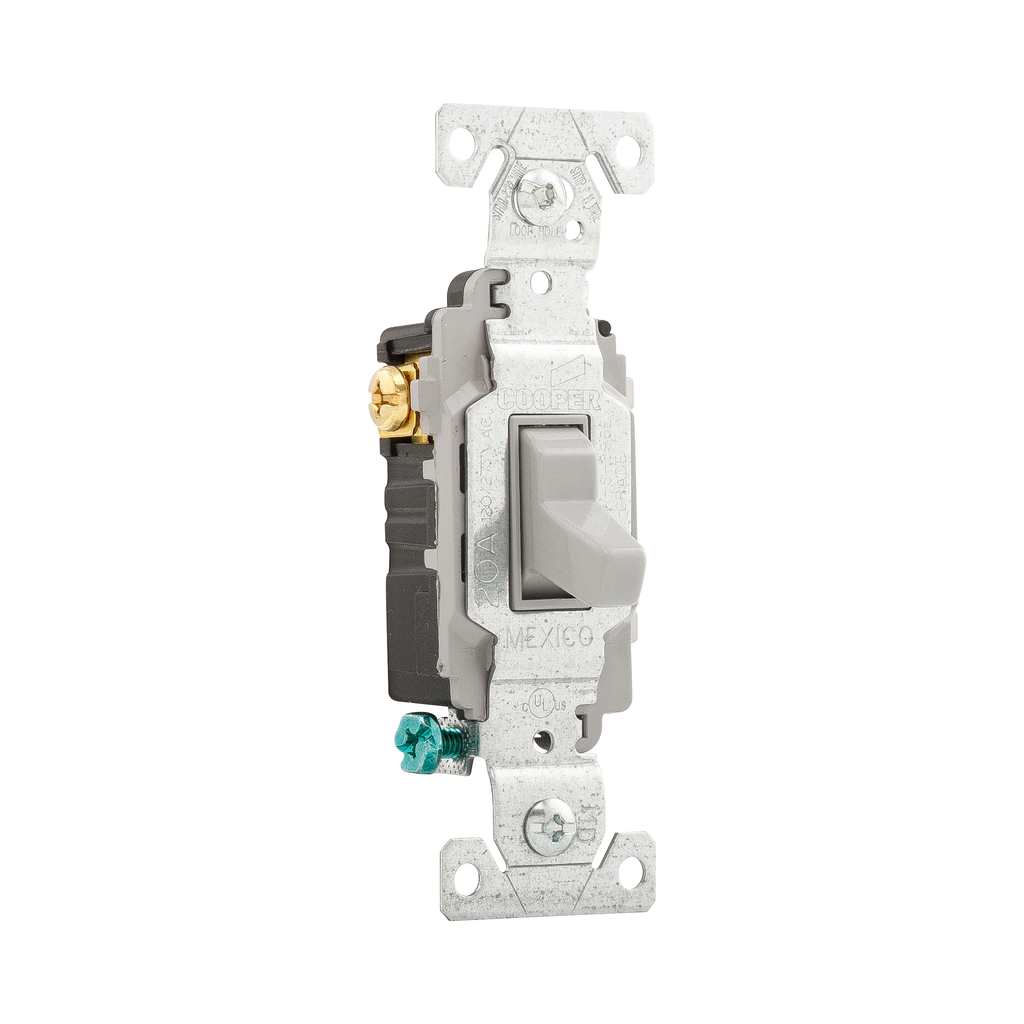

EWD CSB320GY Switch Tog 3Way 20A 12
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually available within 12 to 20 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # CSB320GY
Viking Electric Part # 28350

Specifications

  • Height: 4.2 IN
  • Length: 1.3 IN
  • Width: .902 IN
  • Weight: .16 LB
  • Type: Toggle switch
  • Allowable Wire Size: #14-10 AWG
  • Amperage Rating: 20A
  • Application: Commercial
  • Mounting Type: Wall
  • Voltage Rating: 120/277V
  • Wiring Method: Back and side
  • Connector Type: Screw
  • Color: Gray
  • Number Of Poles: Single-pole
  • Number of Ways: Four-Way
  • Switch Type: Three-way
  • Terminal Enclosure Material T: Brass
  • Terminals: 0.031 in
  • Material: PVC

Categories

Overview

UPC 03266455915
Long Description Eaton commercial grade toggle switch, #14-10 AWG, 20A, Commercial, Wall, 120/277V, Back and side, Screw, Gray, Three-Way, Brass, Terminals: 0.031 in
GTiN 00032664559150
Length 1.3 in
Width .902 in
Color Gray
Voltage 120/277 Volt
Type Toggle Switch
Material PVC,Polyvinyl Chloride
Terminal Type 0.031 In
Applications NON-RESI SWITCHES
Height 4.2 in
Weight .16 lb
Family Brand Name Eaton
Amperage 20 Amp
Number of Poles 1 Pole
Sub Brand Eaton Wiring Devices
