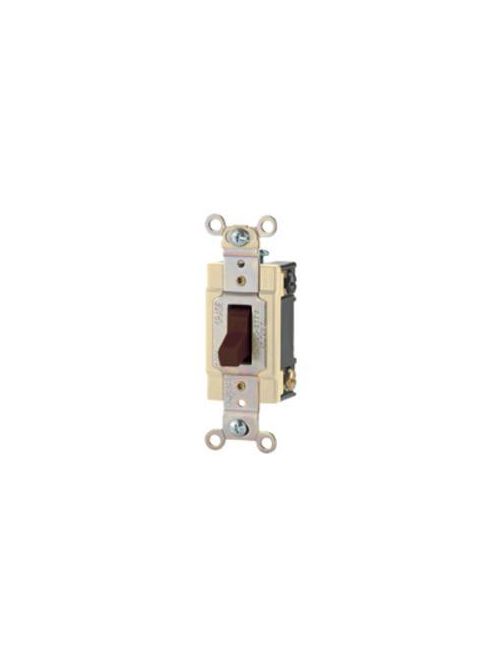

Arrow Hart Wiring CSB115V 15 Amp Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
97 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # CSB115V
Viking Electric Part # 28280

Specifications

  • Height: 4.2 IN
  • Allowable Wire Size: #14-10 AWG
  • Weight: .2 LB
  • Length: 1.3 IN
  • Application: Commercial
  • Width: .902 IN
  • Mounting Type: Flush
  • Voltage Rating: 120/277V
  • Wiring Method: Back and side
  • Connector Type: Screw
  • Color: Ivory
  • Load Type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen
  • Number Of Poles: Single-pole
  • Terminal Enclosure Material T: Brass
  • Material: PVC

Certifications

  • cULus Listed
  • NOM
  • Federal Specification Classification 6241 05

Overview

UPC 03266455889
Long Description Eaton commercial grade toggle switch, #14-10 AWG, 15A, Commercial, Flush, 120/277V, Back and side, Screw, Ivory, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Single-Pole, Single-Pole, Brass, PVC
GTiN 00032664558894
Length 1.3 in
Width .902 in
Color Ivory
Operating Temperature -20 to 60 C
Voltage 120/277 Volt
Type Commercial
Material PVC,Polyvinyl Chloride
Terminal Type 0.031 In
Applications NON-RESI SWITCHES
Mounting Type Wall
Height 4.2 in
Weight .2 lb
Connection Type Screw
Family Brand Name Eaton
Contact Configuration Switches
Amperage 15 Amp
Number of Poles 1 Pole
Sub Brand Eaton Wiring Devices
