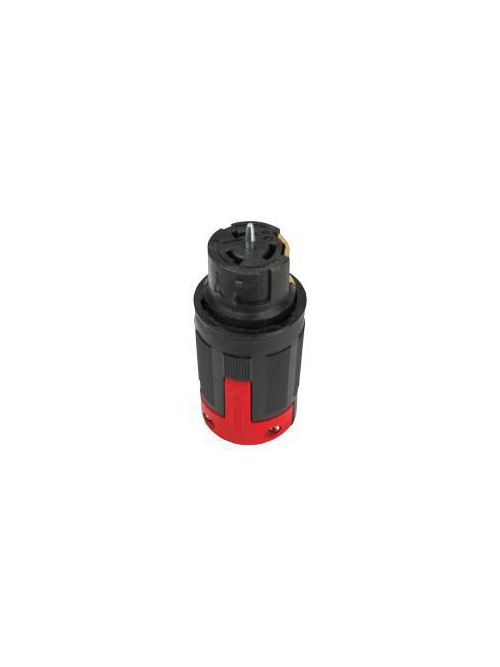

Arrow Hart Wiring CS6364EX 50 Amp 125-250 Volt Nylon 3-Pole 4-Wire Connector
73 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # CS6364EX
Viking Electric Part # 28202

Specifications

  • Special Features: Locking connector
  • Color: Red and black
  • Face/Body Material: Glass filled Nylon
  • Wiring Method: Back
  • Material: Nylon
  • Standard: California standard
  • Allowable Wire Size: #10-4 AWG
  • Amperage Rating: 50A
  • Number Of Poles: Three-pole
  • Contact Material: Zinc plated brass
  • Type: Locking connector
  • Device Grade: Extra Heavy-Duty
  • Nema Configuration: Non-NEMA
  • Design Type: Pro grip
  • Number Of Wires: Four-wire, grounding
  • Operating Temperature: -40°C to 105°C (-40°F to 221°F)
  • Voltage Rating: 125/250 V
  • Cord Diameter: 0.44-1.06 in (11.1-26.0mm)
  • Application: Industrial

General

  • UPC: 032664663871
  • Product Length/Depth: 6.94 IN
  • Product Height: 3.38 IN
  • Product Width: 3.61 IN
  • Product Weight: 1.05 LB
  • Warranty: Refer to warranty document.
  • Certifications: cULus Listed

Categories

Overview

UPC 03266466387
Long Description Industrial grade California standard pro-grip connector design allows for quick and easy termination and assembly, saving valuable time on the job site. Superior design combined with rugged materials make Arrow Hart 50 A devices ideal for temporary power applications.
GTiN 00032664663871
Length 6.94 in
Width 3.61 in
Color Red, Black
Operating Temperature -40 To 105 C
Voltage 125/250 Volt
Type Standard, Pro Grip
Material Impact Modified Nylon
Conductor Size 10-6 AWG
Applications For Temporary Power Applications
Height 3.38 in
Grade Industrial
Weight 1.05 lb
Wire Size 10-6 AWG
Cord Range 0.44 - 1.06 in
Wire Type Grounding
Connection Type Screw
Temperature Rating 40 - 95 C
Family Brand Name Cooper Industries
Amperage 50 Amp
Blade Dimensions 2.56 in dia, 0.44 - 1-1/4 in Cord dia x 5.52 in H
Cord Size 0.44 - 1.06 in
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Arrow Hart
