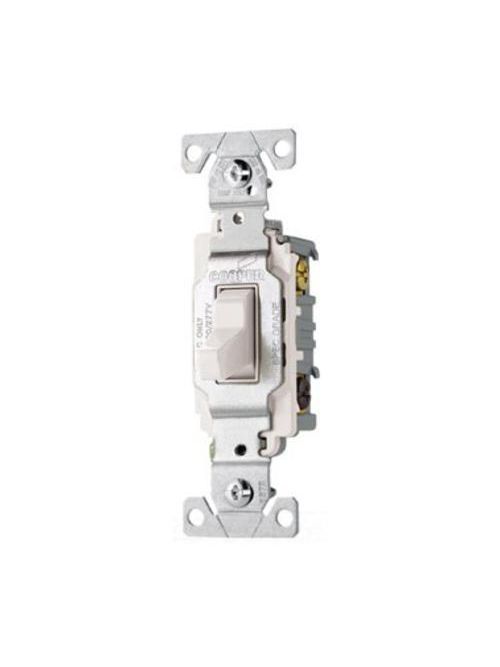

Eaton Wiring Devices CS320W 3-Way 20 Amp Toggle Switch
40 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # CS320W
Viking Electric Part # 28182

Specifications

  • Connector Type: Screw
  • Switch Type: Three-way
  • Terminal Enclosure Material T: Copper alloy
  • Mounting Type: Wall
  • Color: White
  • Wiring Method: Side wire
  • Material: PVC
  • Allowable Wire Size: #14-10 AWG
  • Amperage Rating: 20A
  • Number Of Poles: Single-pole
  • Type: Toggle switch
  • Number of Ways: Three-Way
  • Terminals: 0.031 in
  • Voltage Rating: 120/277 V
  • Application: Commercial

General

  • UPC: 032664488634
  • Product Length/Depth: 1.3 IN
  • Product Height: 4.2 IN
  • Product Width: .902 IN
  • Product Weight: .12 LB
  • Certifications: cULus Listed

Categories

Overview

UPC 03266448863
Long Description Eaton commercial grade toggle switch, #14-10 AWG, 20A, Commercial, Wall, 120/277V, Side wire, Screw, White, Three-Way, Copper alloy, Terminals: 0.031 in
GTiN 00032664488634
Length 1.3 in
Width .902 in
Color White
Operating Temperature -40 to 65 C
Voltage 120/277 Volt
Type 3-Way
Material PVC
Terminal Type 0.031 In
Applications For High Quality in Low-Abuse Commercial Areas
Mounting Type Wall
Height 4.2 in
Weight .12 lb
Connection Type Screw
Family Brand Name Eaton Wiring Devices
Actuator Toggle
Contact Configuration Switches
Amperage 20 Amp
Number of Poles 1 Pole
Sub Brand Eaton Wiring Devices
Conductor Size 14-10 AWG
Grade Commercial
Blade Dimensions 1.3 in W x 4.2 in H
Action Positive Snap
Operating Cycles 50000
