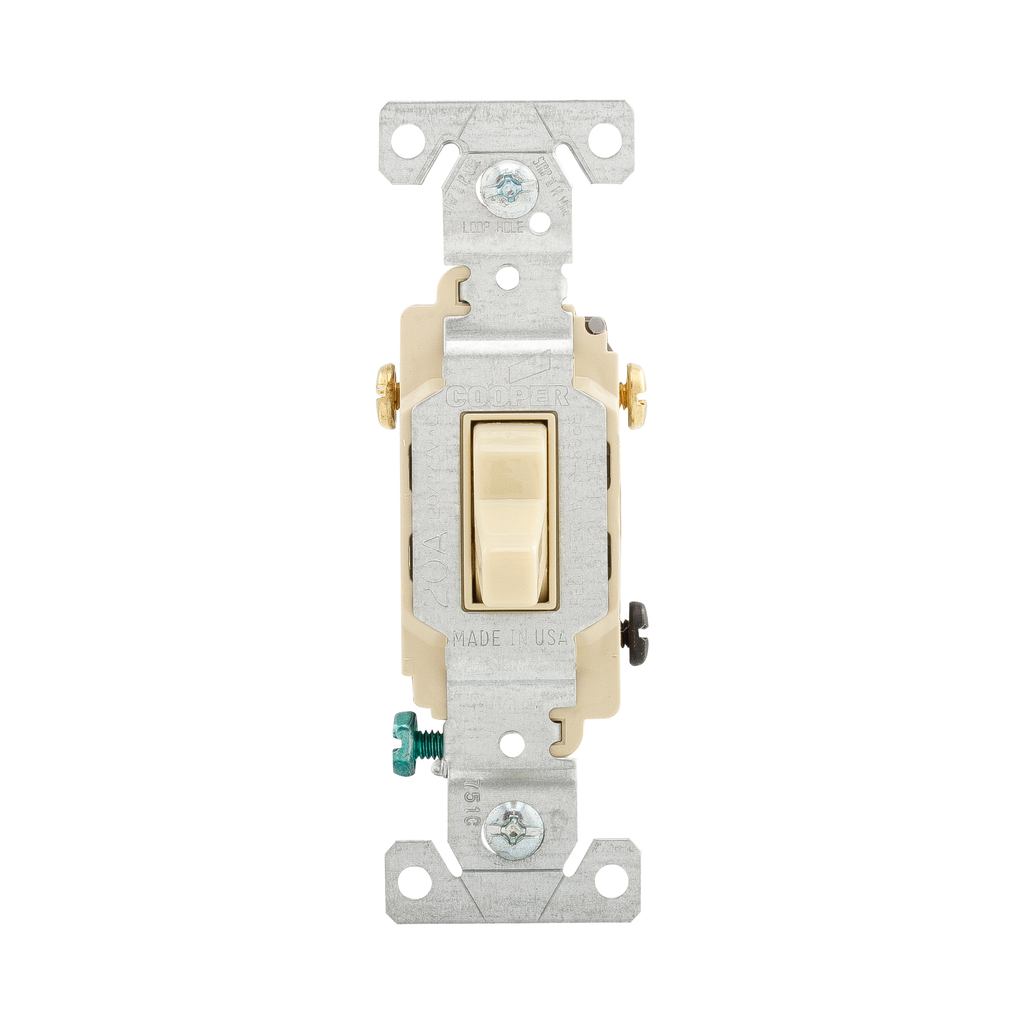

EWD CS320V Switch Toggle 3Way 20A 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually available within 6 to 8 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # CS320V
Viking Electric Part # 28181

Specifications

  • Connector Type: Screw
  • Switch Type: Three-way
  • Terminal Enclosure Material T: Copper alloy
  • Mounting Type: Wall
  • Color: Ivory
  • Wiring Method: Side wire
  • Material: PVC
  • Allowable Wire Size: #14-10 AWG
  • Amperage Rating: 20A
  • Number Of Poles: Single-pole
  • Type: Toggle switch
  • Number of Ways: Three-Way
  • Terminals: 0.031 in
  • Voltage Rating: 120/277 V
  • Application: Commercial

General

  • UPC: 032664488580
  • Product Length/Depth: 1.3 IN
  • Product Height: 4.2 IN
  • Product Width: .902 IN
  • Product Weight: .1 LB
  • Certifications: cULus Listed

Categories

Overview

UPC 03266448858
Long Description Eaton commercial grade toggle switch, #14-10 AWG, 20A, Commercial, Wall, 120/277V, Side wire, Screw, Ivory, Three-Way, Copper alloy, Terminals: 0.031 in
GTiN 00032664488580
Length 1.3 in
Width .902 in
Color Ivory
Operating Temperature -40 to 65 C
Voltage 120/277 Volt
Type Toggle Switch
Material PVC,Polyvinyl Chloride
Terminal Type 0.031 In
Connector Type Screw
Applications NON-RESI SWITCHES
Mounting Type Wall
Height 4.2 in
Weight .1 lb
Wire Size 14-10 AWG
Connection Type Screw
Switch Type Three-way
Family Brand Name Eaton
Actuator Compact Toggle
Contact Configuration Switches
Amperage 20 Amp
Wiring Method Side
Enclosure Material Copper Alloy
Number of Poles 1
Sub Brand Eaton Wiring Devices
