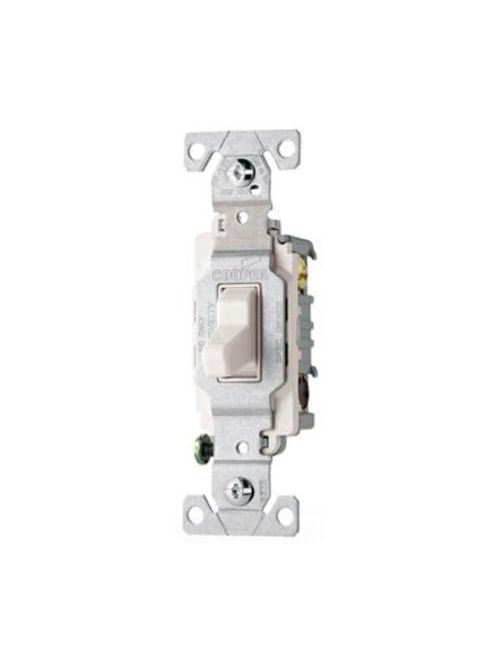

Eaton Wiring Devices CS315W 3-Way 15 Amp Toggle Switch
19 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # CS315W
Viking Electric Part # 28176

Specifications

  • Connector Type: Screw
  • Switch Type: Three-way
  • Terminal Enclosure Material T: Copper alloy
  • Mounting Type: Wall
  • Color: White
  • Wiring Method: Side wire
  • Material: PVC
  • Allowable Wire Size: #14-10 AWG
  • Amperage Rating: 15A
  • Number Of Poles: Single-pole
  • Type: Toggle switch
  • Number of Ways: Three-Way
  • Terminals: 0.031 in
  • Voltage Rating: 120/277 V
  • Application: Commercial

General

  • UPC: 032664487804
  • Product Length/Depth: 1.3 IN
  • Product Height: 4.2 IN
  • Product Width: .902 IN
  • Product Weight: .1 LB
  • Certifications: cULus Listed

Overview

UPC 03266448780
Long Description Patent pending spring cup toggle design for robust actuation. Terminals accept up to #10 AWG solid or stranded. 120/277V/AC rating ideal for fluorescent lighting fixtures typical in commercial applications. Terminal screws backed out and ready for wiring. Tri-combo head mounting and terminal screws ease installation. Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections (CSB only).
GTiN 00032664487804
Length 1.3 in
Width .902 in
Color White
Operating Temperature -40 to 65 C
Voltage 120/277 Volt
Type Toggle Switch
Material PVC,Polyvinyl Chloride
Terminal Type 0.031 In
Applications NON-RESI SWITCHES
Mounting Type Wall
Height 4.2 in
Grade Commercial
Weight .1 lb
Connection Type Screw
Family Brand Name Eaton Wiring Devices
Actuator Compact Toggle
Contact Configuration Switches
Amperage 15 Amp
Blade Dimensions 1.13 in W x 0.87 in D
Number of Poles 1
Sub Brand Arrow Hart
