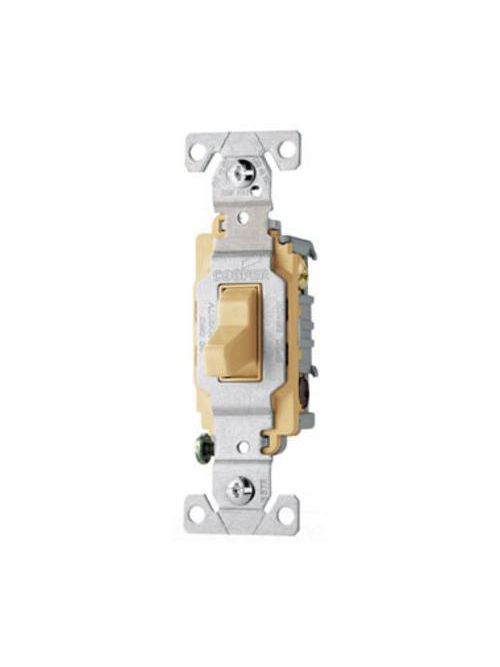

Arrow Hart Wiring CS315V 3-Way 15 Amp Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
3 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # CS315V
Viking Electric Part # 28175

Specifications

  • Height: 4.2 IN
  • Length: 1.3 IN
  • Width: .902 IN
  • Weight: .1 LB
  • Type: Toggle switch
  • Allowable Wire Size: #14-10 AWG
  • Amperage Rating: 15A
  • Application: Commercial
  • Mounting Type: Wall
  • Voltage Rating: 120/277V
  • Wiring Method: Side wire
  • Connector Type: Screw
  • Color: Ivory
  • Number Of Poles: Single-pole
  • Number of Ways: Three-Way
  • Switch Type: Three-way
  • Terminal Enclosure Material T: Copper alloy
  • Terminals: 0.031 in
  • Material: PVC

Categories

Overview

UPC 03266448775
Long Description Eaton commercial grade toggle switch, #14-10 AWG, 15A, Commercial, Wall, 120/277V, Side wire, Screw, Ivory, Three-Way, Copper alloy, Terminals: 0.031 in
GTiN 00032664487750
Length 1.3 in
Width .902 in
Color Ivory
Operating Temperature -40 to 65 C
Voltage 120/277 Volt
Type 3-Way
Material PVC
Terminal Type 0.031 In
Connector Type Screw
Applications For Commercial Applications
Mounting Type Wall
Height 4.2 in
Weight .1 lb
Wire Size 14-10 AWG
Connection Type Screw
Switch Type Three-way
Family Brand Name Eaton
Actuator Compact Toggle
Contact Configuration Switches
Amperage 15 Amp
Wiring Method Side
Enclosure Material Copper Alloy
Number of Poles 1 Pole
Sub Brand Arrow Hart
Conductor Size 14-10 AWG
Grade Specification
Blade Dimensions 1.3 in W x 4.2 in H x 0.902 in D
Used With Fluorescent Lighting Fixtures
Operating Cycles 50000
