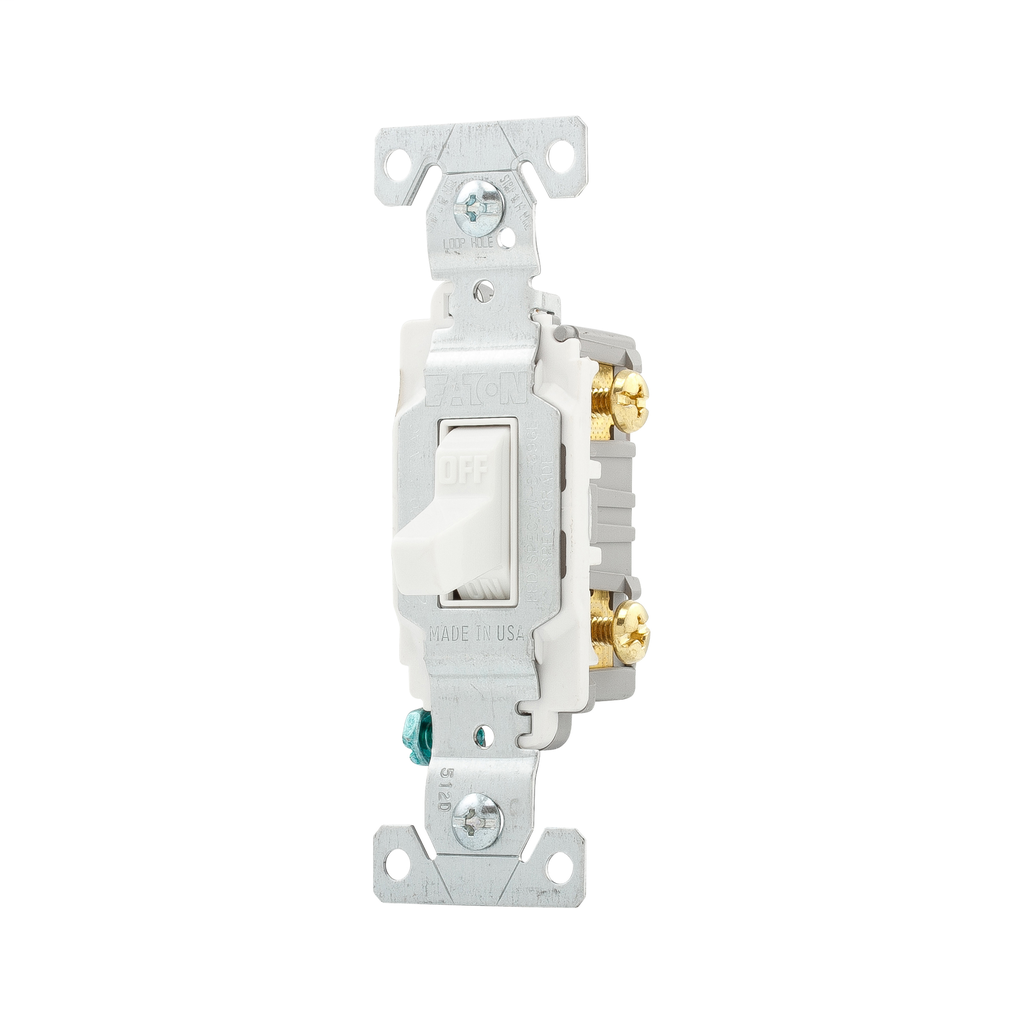

Eaton Wiring Devices CS220W 20 Amp Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually available within 9 to 13 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # CS220W
Viking Electric Part # 28170

Specifications

  • Height: 4.2 IN
  • Length: 1.3 IN
  • Width: .902 IN
  • Weight: .13 LB
  • Type: Toggle switch
  • Allowable Wire Size: #14-10 AWG
  • Amperage Rating: 20A
  • Application: Commercial
  • Mounting Type: Flush
  • Voltage Rating: 120/277V
  • Wiring Method: Side wire
  • Connector Type: Screw
  • Color: White
  • Load Type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen
  • Number Of Poles: Two-pole
  • Terminal Enclosure Material T: Brass
  • Material: PVC

Overview

UPC 03266448840
Long Description Commercial grade AC toggle switch with side wire. Heavy duty cam action mechanism insures quiet switch action. Side wire terminals accept up to 10 AWG solid or stranded wire. Ground screw terminal standard. 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications.
GTiN 00032664488405
Length 1.3 in
Width .902 in
Color White
Operating Temperature -40 to 65 C
Voltage 120/277 Volt
Type Heavy Duty
Material PVC,Polyvinyl Chloride
Applications For Fluorescent Lighting Fixtures Typical in Commercial Applications
Mounting Type Wall
Height 4.2 in
Grade Commercial
Weight .13 lb
Connection Type Screw
Family Brand Name Eaton Wiring Devices
Actuator Compact Toggle
Contact Configuration Switches
Amperage 20 Amp
Blade Dimensions 3.28 in L x 1.13 in W x 0.88 in D
Number of Poles 2 Pole
Action Toggle
Sub Brand Arrow Hart
