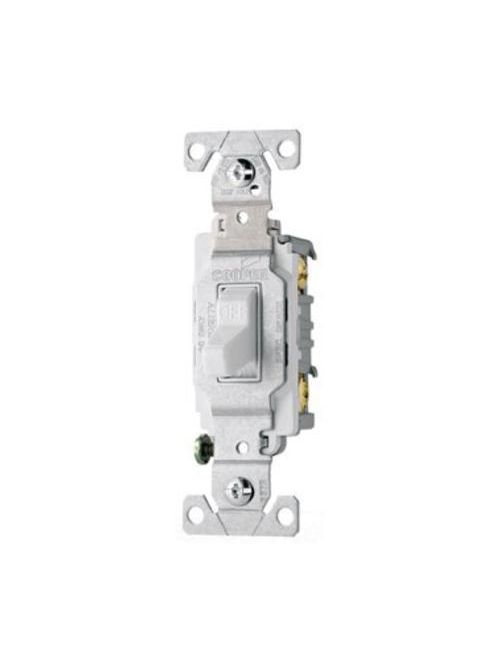

Eaton Wiring Devices CS115W 15 Amp Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
57 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # CS115W
Viking Electric Part # 28120

Specifications

  • Height: 4.2 IN
  • Length: 1.3 IN
  • Width: .902 IN
  • Weight: .1 LB
  • Type: Toggle switch
  • Allowable Wire Size: #14-10 AWG
  • Amperage Rating: 15A
  • Application: Commercial
  • Mounting Type: Flush
  • Voltage Rating: 120/277V
  • Wiring Method: Side wire
  • Connector Type: Screw
  • Color: White
  • Load Type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen
  • Number Of Poles: Single-pole
  • Terminal Enclosure Material T: Brass
  • Material: PVC

Overview

UPC 03266448743
Long Description Specification grade commercial side wired connection switch with single pole, positive snap action, Toggle actuator, Screw mount.
GTiN 00032664487439
Length 1.3 in
Width .902 in
Color White
Operating Temperature -40 to 65 C
Voltage 120/277 Volt
Type Toggle Switch
Material PVC,Polyvinyl Chloride
Connector Type Screw
Applications NON-RESI SWITCHES
Mounting Type Wall
Height 4.2 in
Grade Commercial
Weight .1 lb
Wire Size 14-10 AWG
Connection Type Screw
Family Brand Name Eaton Wiring Devices
Actuator Compact Toggle
Contact Configuration Switches
Amperage 15 Amp
Blade Dimensions 1.13 in W x 0.87 in D
Wiring Method Side
Enclosure Material Brass
Number of Poles 1 Pole
Load Type Fan,Halogen,Motor Control,Incandescent,LED,CFL,Flourescent,MLV,ELV
Sub Brand Arrow Hart
