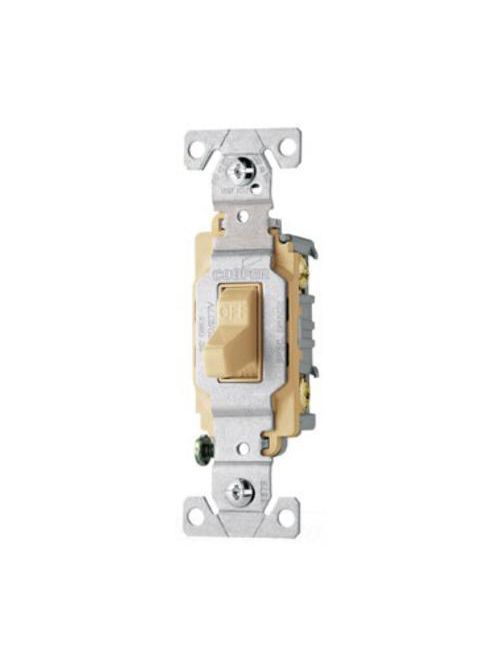

Arrow Hart Wiring CS115V 15 Amp Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
30 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # CS115V
Viking Electric Part # 28119

Specifications

  • Height: 4.2 IN
  • Length: 1.3 IN
  • Width: .902 IN
  • Weight: .1 LB
  • Type: Toggle switch
  • Allowable Wire Size: #14-10 AWG
  • Amperage Rating: 15A
  • Application: Commercial
  • Mounting Type: Flush
  • Voltage Rating: 120/277V
  • Wiring Method: Side wire
  • Connector Type: Screw
  • Color: Ivory
  • Load Type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen
  • Number Of Poles: Single-pole
  • Terminal Enclosure Material T: Brass
  • Material: PVC

Overview

UPC 03266448738
Long Description Eaton commercial grade toggle switch, #14-10 AWG, 15A, Commercial, Flush, 120/277V, Side wire, Screw, Ivory, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Single-Pole, Single-Pole, Brass, PVC
GTiN 00032664487385
Length 1.3 in
Width .902 in
Color Ivory
Operating Temperature -40 to 65 C
Voltage 120/277 Volt
Type Compact
Material PVC
Applications For Commercial Use
Mounting Type Wall
Height 4.2 in
Weight .1 lb
Connection Type Screw
Family Brand Name Eaton
Actuator Toggle
Contact Configuration Switches
Amperage 15 Amp
Number of Poles 1 Pole
Sub Brand Arrow Hart
Conductor Size 14-10 AWG
Grade Commercial, Specification
Blade Dimensions 1.3 in L x 0.902 in W x 4.2 in H
