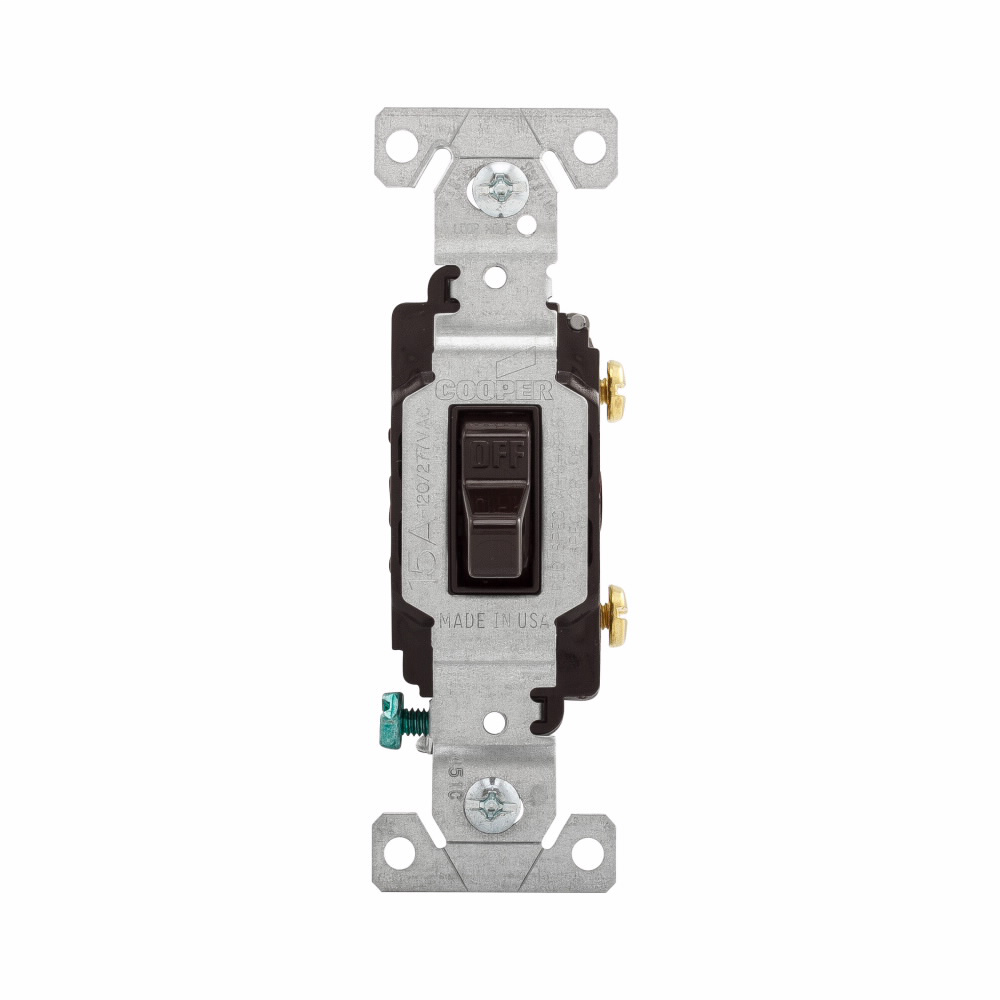

EWD CS115B Switch Toggle SP 15A 120
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually available within 6 to 8 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # CS115B
Viking Electric Part # 28116

Specifications

  • Connector Type: Screw
  • Switch Type: Single-pole
  • Load Type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen
  • Terminal Enclosure Material T: Brass
  • Mounting Type: Flush
  • Color: Brown
  • Wiring Method: Side wire
  • Material: PVC
  • Allowable Wire Size: #14-10 AWG
  • Amperage Rating: 15A
  • Number Of Poles: Single-pole
  • Type: Toggle switch
  • Voltage Rating: 120/277 V
  • Application: Commercial

General

  • UPC: 032664487309
  • Product Length/Depth: 1.3 IN
  • Product Height: 4.2 IN
  • Product Width: .902 IN
  • Product Weight: .11 LB
  • Certifications: cULus Listed

Categories

Overview

UPC 03266448730
Long Description Eaton commercial grade toggle switch, #14-10 AWG, 15A, Commercial, Flush, 120/277V, Side wire, Screw, Brown, Load type: Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Flourescent, Halogen, Single-Pole, Single-Pole, Brass, PVC
GTiN 00032664487309
Length 1.3 in
Width .902 in
Color Brown
Operating Temperature -40 to 65 C
Voltage 120/277 Volt
Type Standard Grade, 3-Way, Side Wire
Material PVC Top and Bottom Housing, Nylon Toggle, Brass Terminal Enclosure
Connector Type Screw
Applications For Motor Control, Fan, LED, Incandescent, ELV, MLV, CFL, Fluorescent, Halogen
Mounting Type Wall
Height 4.2 in
Weight .11 lb
Wire Size 14-10 AWG
Connection Type Screw
Family Brand Name Eaton
Actuator Toggle
Contact Configuration Switches
Amperage 15 Amp
Wiring Method Side
Enclosure Material Brass
Number of Poles 1 Pole
Load Type CFL,ELV,Halogen,Motor Control,LED,Fan,Flourescent,Incandescent,MLV
Sub Brand Eaton Wiring Devices
Conductor Size 14-10 AWG
Grade Commercial
Blade Dimensions 1.3 in W x 0.902 in D x 4.2 in H
Operating Cycles 50000
