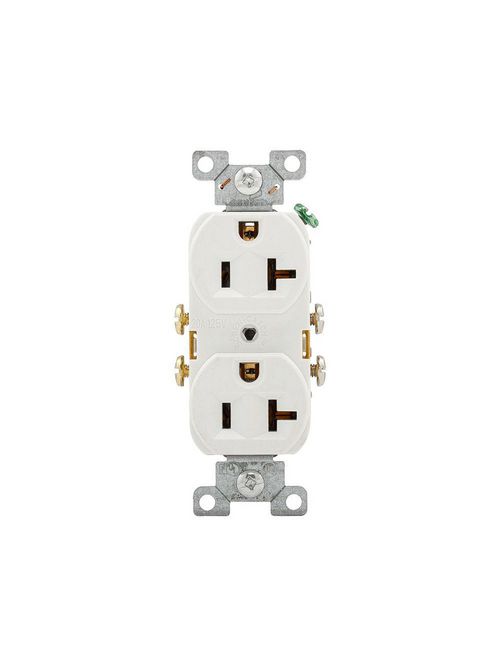

EWD CR20W Recp Duplex 20A 125V 2P3W
301 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # CR20W
Viking Electric Part # 27835

Specifications

General

  • UPC: 032664489235
  • Product Length/Depth: 1.24 IN
  • Product Height: 4 IN
  • Product Width: .79 IN
  • Product Weight: .15 LB
  • Warranty: Refer to warranty document.
  • Compliances: RoHS Compliant
  • Certifications: cULus Listed

Overview

UPC 03266448923
Long Description Commercial specification grade duplex receptacle. It is corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly. It is 0.032 inch thick, brass, triple-wipe power contacts for lasting retention. It is easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. It is impact resistant nylon face and thermoplastic back body.
GTiN 00032664489235
Length 1.24 in
Width .79 in
Size 0.82 in D x 4.19 in H
Color White
Voltage 125 Volt
Type Duplex,Straight Blade
Insulation Type PVC
Material PVC
Conductor Size 14 to 10 AWG
Applications NON-RESI RECEPTACLE
Mounting Type Flush
Height 4 in
Grade Commercial
Weight .15 lb
Wire Size 14-10 AWG
Connection Type Screw
Temperature Rating -20 To 70 C
Family Brand Name Eaton Wiring Devices
Receptacle Type Grounding
NEMA 5-20R
Contact Material Brass
Amperage 20 Amp
Dielectric Strength 2000 V
Wiring Method Side
Environmental Conditions See Spec Sheet
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Arrow Hart
