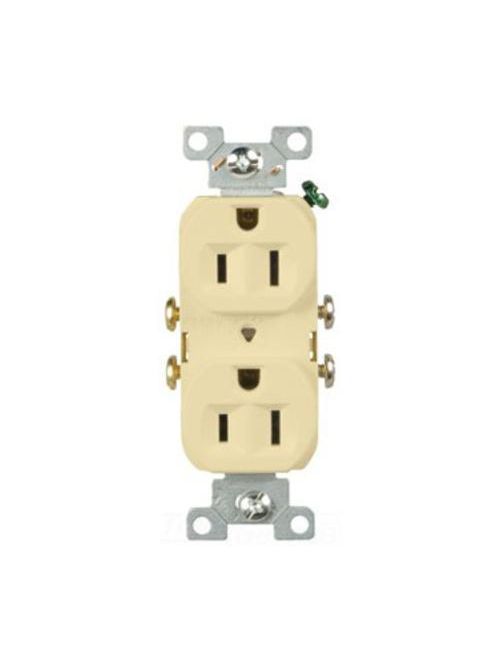

Eaton Wiring Devices CR15V 15 Amp 125 Volt Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
64 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # CR15V
Viking Electric Part # 27814

Specifications

  • Height: 4 IN
  • Length: 1.24 IN
  • Width: .79 IN
  • Weight: .15 LB
  • Type: Duplex
  • Allowable Wire Size: #14 to 10 AWG
  • Amperage Rating: 15A
  • Mounting Type: Flush
  • Voltage Rating: 125V
  • Wiring Method: Side
  • Color: Ivory
  • Contact Material: Brass
  • Design Type: Receptacle
  • Nema Configuration: 5-15R
  • Number Of Poles: Two-pole
  • Number Of Wires: Three-wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Style Type: Standard
  • Connection Type: Screw
  • Material: PVC

Overview

UPC 03266448898
Long Description Eaton commercial specification grade duplex receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Side wire, Ivory, Brass, High-impact nylon, PVC, 5-15R, Duplex, Screw, PVC, Core pack
GTiN 00032664488986
Length 1.24 in
Width .79 in
Color Ivory
Voltage 125 Volt
Type Tamper-Resistant
Material PVC
Applications NON-RESI RECEPTACLE
Height 4 in
Weight .15 lb
Family Brand Name Eaton Wiring Devices
Amperage 15 Amp
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Arrow Hart
Conductor Size 14-10 AWG
Mounting Type Flush
Grade Commercial
Wire Type Grounding
Connection Type Side Wired
Temperature Rating -20 to 70 C
Grounding Yes
Contact Material Brass
Dielectric Strength 2000 V
Blade Dimensions 1.3 in W x 0.82 in D x 4.19 in H
Environmental Conditions UL 94-V2 Flammability
