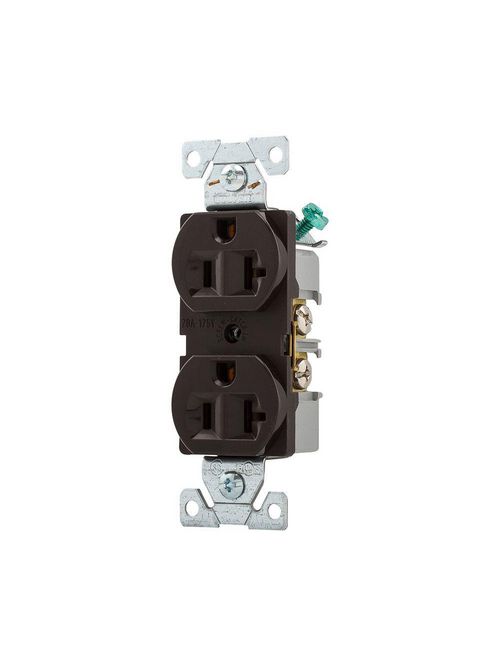

EWD BR20B Recp Duplex 20A 125V 2P3W
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
102 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # BR20B
Viking Electric Part # 25380

Specifications

  • Special Features: Auto-grounding, screw-catch
  • Mounting Type: Flush
  • Color: Brown
  • Device Type: Receptacle
  • Face/Body Material: High-impact nylon, PVC
  • Wiring Method: Back and side
  • Material: PVC
  • Allowable Wire Size: #14-10 AWG
  • Amperage Rating: 20A
  • Number Of Poles: Two-pole
  • Contact Material: Brass
  • Type: Duplex
  • Device Grade: Commercial specification grade
  • Nema Configuration: 5-20R
  • Style Type: Standard
  • Design Type: Straight blade
  • Connection Type: Screw
  • Number Of Wires: Three-wire
  • Receptacle Type: Duplex
  • Voltage Rating: 125V
  • Application: Commercial

General

  • UPC: 032664750755
  • Product Length/Depth: 1.3 IN
  • Product Height: 4.2 IN
  • Product Width: .88 IN
  • Product Weight: .21 LB
  • Warranty: Refer to warranty document.
  • Certifications: UL

Overview

UPC 03266475075
Long Description Eaton commercial specification grade duplex receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Back and side, Brown, Brass, High-impact nylon, PVC, 5-20R, Duplex, Screw, PVC, Core pack
GTiN 00032664750755
Length 1.3 in
Width .88 in
Color Brown
Voltage 125 Volt
Type Duplex
Insulation Type Nylon Face,PVC Base
Material PVC,Polyvinyl Chloride
Applications NON-RESI RECEPTACLE
Mounting Type Flush
Height 4.2 in
Weight .21 lb
Wire Size 14-10 AWG
Standard UL
Connection Type Screw
Temperature Rating -20 To 70 C
Family Brand Name Eaton
Receptacle Type Grounding
NEMA 5-20R
Contact Material Brass
Amperage 20 Amp
Wiring Method Side,Back
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
