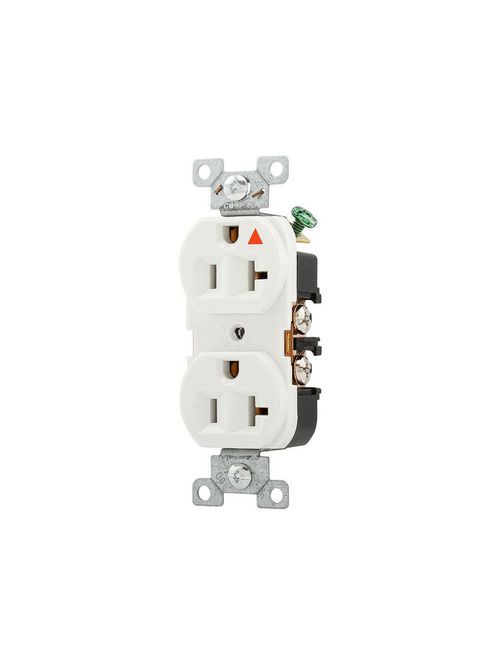

Eaton Wiring Devices IG5362W 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R White Isolated Ground Straight Blade Duplex Receptacle
67 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # AHIG5362W
Viking Electric Part # 21903

Specifications

  • Special Features: Isolated ground, terminal guards
  • Mounting Type: Flush
  • Color: White
  • Device Type: Receptacle
  • Face/Body Material: High-impact nylon face, Glass-filled nylon base
  • Wiring Method: Back and side
  • Material: Glass-filled nylon
  • Allowable Wire Size: #14-10 AWG
  • Amperage Rating: 20A
  • Number Of Poles: Two-pole
  • Contact Material: Brass
  • Type: Duplex
  • Device Grade: Extra heavy duty industrial specification grade
  • Nema Configuration: 5-20R
  • Style Type: Standard
  • Design Type: Straight blade
  • Connection Type: Screw
  • Number Of Wires: Three-wire
  • Receptacle Type: Duplex
  • Voltage Rating: 125V
  • Application: Industrial

General

  • UPC: 032664547584
  • Product Length/Depth: 1.3 IN
  • Product Height: 4.19 IN
  • Product Width: .89 IN
  • Product Weight: .26 LB
  • Warranty: Refer to warranty document.
  • Compliances: RoHS Compliant
  • Certifications: UL

Categories

Overview

UPC 03266454758
Long Description Eaton Arrow Hart extra heavy-duty industrial specification grade duplex receptacle,#14-10 AWG,20A,Flush,125V,Back and side,White,Brass,High-impact nylon face,Glass-filled nylon base,5-20R,Screw,Core pack,Isolated ground
GTiN 00032664547584
Length 1.3 in
Width .89 in
Color White
Voltage 125 Volt
Type Duplex
Insulation Type Glass Filled Nylon Base,Nylon Face
Material Glass-filled Nylon
Applications INDUSTRIAL RECEPTACLES
Mounting Type Flush
Height 4.19 in
Weight .26 lb
Wire Size 14-10 AWG
Connection Type Screw
Family Brand Name Eaton
NEMA 5-20R
Amperage 20 Amp
Environmental Conditions Industrial Grade
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
