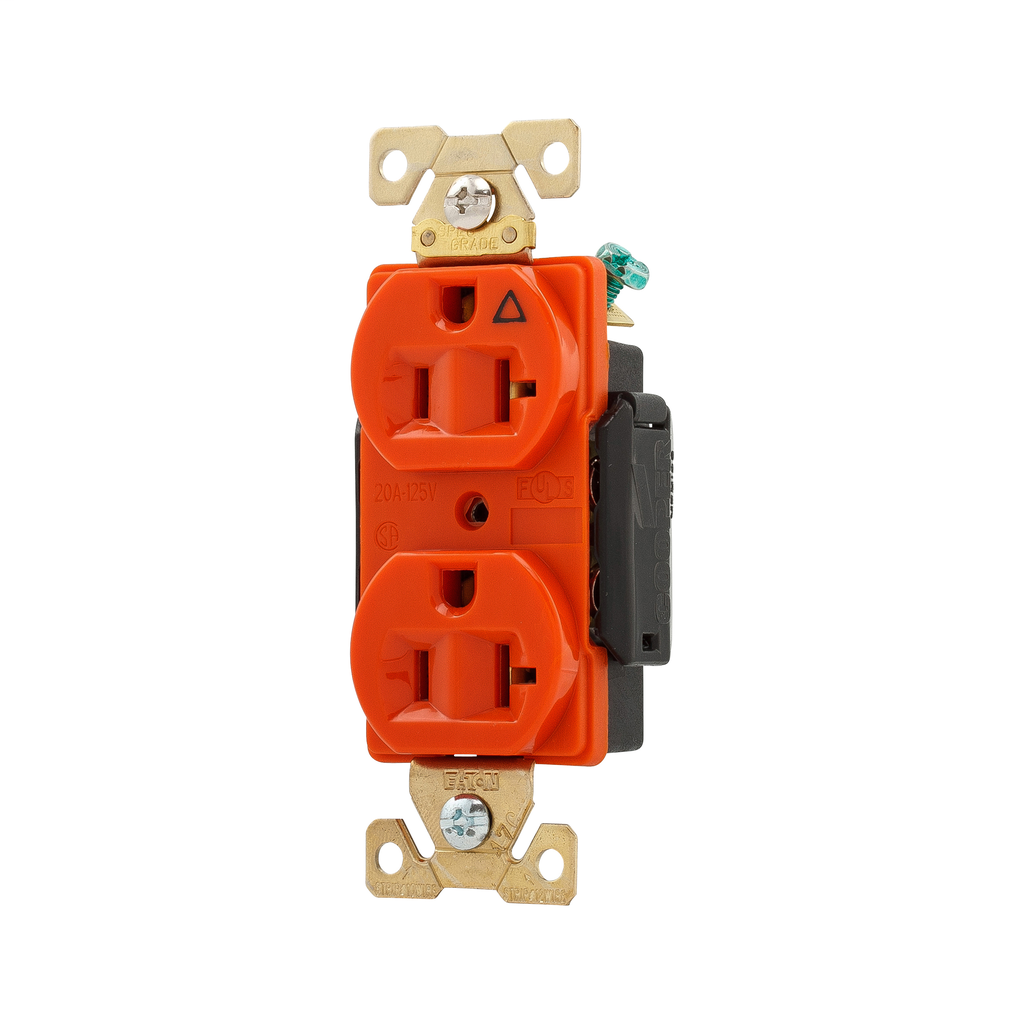

EWD AHIG5362RN Recp Duplex IG 20A 1
118 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # AHIG5362RN
Viking Electric Part # 21901

Specifications

  • Height: 4.19 IN
  • Special Features: Isolated ground, Terminal Guards
  • Weight: .37 LB
  • Length: 1.3 IN
  • Type: Duplex
  • Allowable Wire Size: #14 to 10 AWG
  • Width: .89 IN
  • Amperage Rating: 20A
  • Mounting Type: Flush
  • Voltage Rating: 125V
  • Wiring Method: Back and side
  • Color: Orange
  • Contact Material: Brass
  • Design Type: Receptacle
  • Nema Configuration: 5-20R
  • Number Of Poles: Two-pole
  • Number Of Wires: Three-wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Style Type: Standard
  • Connection Type: Screw
  • Material: Glass-filled nylon

Certifications

  • UL
  • NOM
  • Federal Specification Classification 6233 01

Product Compliance

  • RoHS Compliant

Overview

UPC 03266435020
Long Description Eaton Arrow Hart extra heavy-duty industrial specification grade duplex receptacle,#14 to 10 AWG,20A,Flush,125V,Back and side,Orange,Brass,High-impact nylon face,Glass-filled nylon base,5-20R,Two-pole,three-wire,grounding,Screw,Core pack
GTiN 00032664350207
Length 1.3 in
Width .89 in
Color Orange
Voltage 125 Volt
Type Duplex
Insulation Type Glass Filled Nylon Base,Nylon Face
Material Glass-filled Nylon
Applications INDUSTRIAL RECEPTACLES
Mounting Type Flush
Height 4.19 in
Weight .37 lb
Wire Size 14-10 AWG
Connection Type Screw
Family Brand Name Eaton
NEMA 5-15R
Amperage 20 Amp
Environmental Conditions Industrial Grade
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
