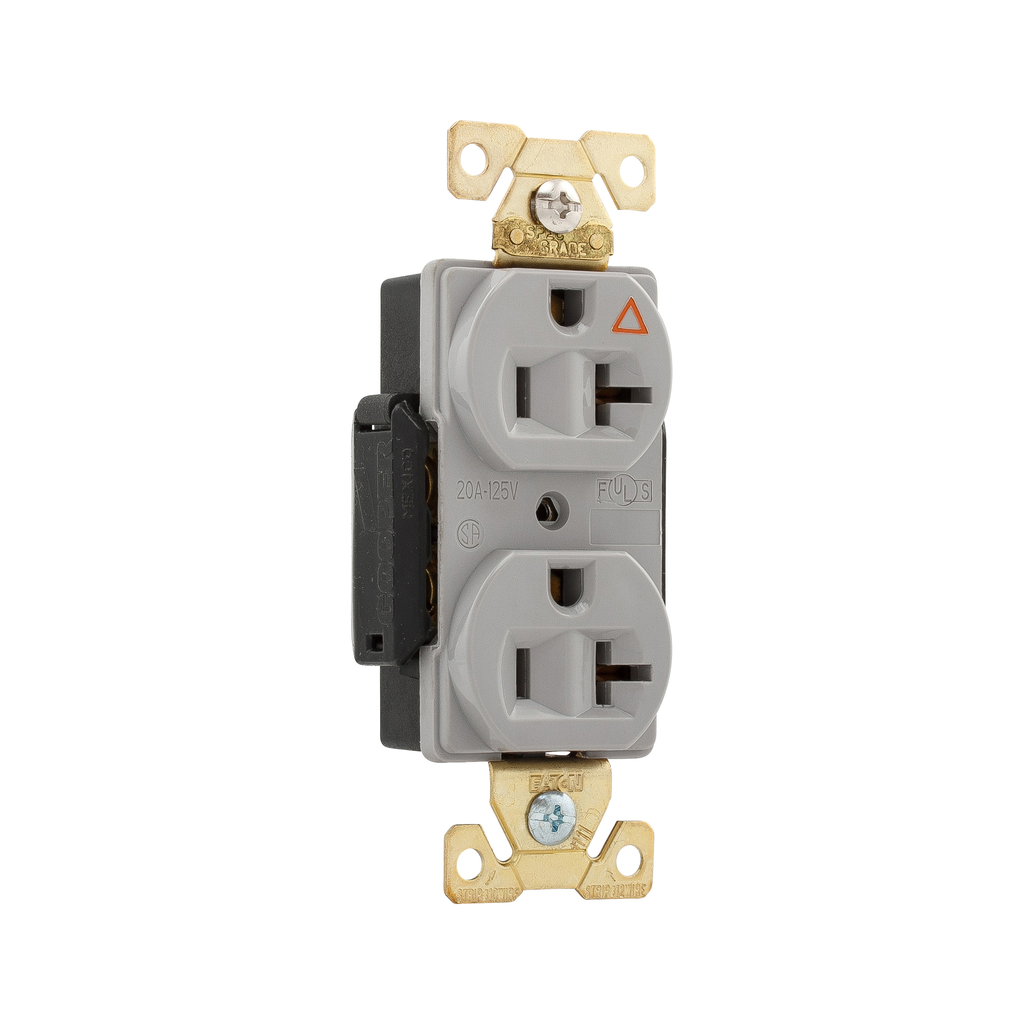

EWD AHIG5362GY Recp Duplex IG 20A 1
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually available within 6 to 8 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # AHIG5362GY
Viking Electric Part # 21899

Specifications

  • Height: 4.19 IN
  • Length: 1.3 IN
  • Width: .89 IN
  • Weight: .37 LB
  • Special Features: Isolated ground, Terminal Guards
  • Type: Duplex
  • Allowable Wire Size: #14 to 10 AWG
  • Amperage Rating: 20A
  • Mounting Type: Flush
  • Voltage Rating: 125V
  • Wiring Method: Back and side
  • Color: Gray
  • Contact Material: Brass
  • Design Type: Receptacle
  • Nema Configuration: 5-20R
  • Number Of Poles: Two-pole
  • Number Of Wires: Three-wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Style Type: Standard
  • Connection Type: Screw
  • Material: Glass-filled nylon

Categories

Overview

UPC 03266454759
Long Description Eaton Arrow Hart extra heavy-duty industrial specification grade duplex receptacle,#14-10 AWG,20A,Flush,125V,Back and side,Gray,Brass,High-impact nylon face,Glass-filled nylon base,5-20R,Screw,Core pack,Isolated ground
GTiN 00032664547591
Length 1.3 in
Width .89 in
Color Gray
Voltage 125 Volt
Type Duplex
Material Glass-filled Nylon
Applications INDUSTRIAL RECEPTACLES
Height 4.19 in
Weight .37 lb
Family Brand Name Eaton
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
