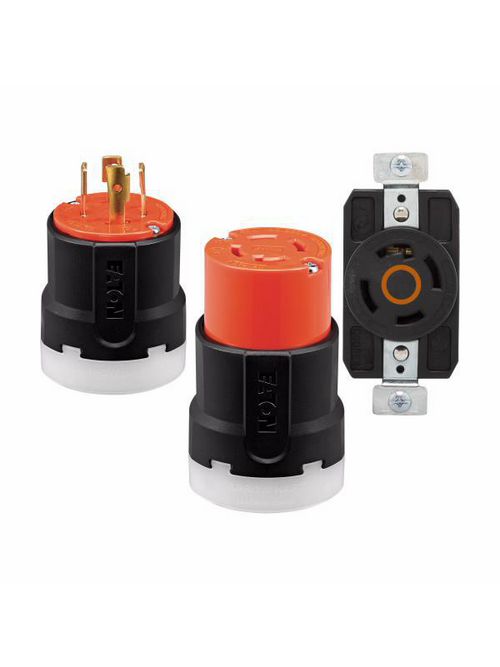

A-H AHCL1430R CCL RECP 30A 125/250V 3P4W OR&BK L14-30R
52 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # AHCL1430R
Viking Electric Part # 341244
Color coded single receptacle. Rugged glass filled nylon body. Clearly marked rating, NEMA configuration and approval listings on receptacle face. One piece brass contacts offer superior performance and minimum heat rise. Back and side wiring terminal clamps for easy, secure wiring.

Categories

Overview

UPC 03266475854
Family Brand Name Eaton
Long Description Color coded single receptacle. Rugged glass filled nylon body. Clearly marked rating, NEMA configuration and approval listings on receptacle face. One piece brass contacts offer superior performance and minimum heat rise. Back and side wiring terminal clamps for easy, secure wiring.
Color Orange/Black
Type Color Coded, Ultra Grip
Material Glass Filled Nylon
Conductor Size 14-8 AWG
Applications For Industrial Use
Grade Industrial
Connection Type Back and Side Wired
Temperature Rating -40 to 70 C
Grounding Grounding
Contact Material 0.041 in T Brass
Dielectric Strength 2000 V
Blade Dimensions 1.62 in L x 1.06 in W x 3.64 in H
Environmental Conditions V0 Flammability Rated Per UL94
Number of Poles 3 Pole
Number of Wires 4
