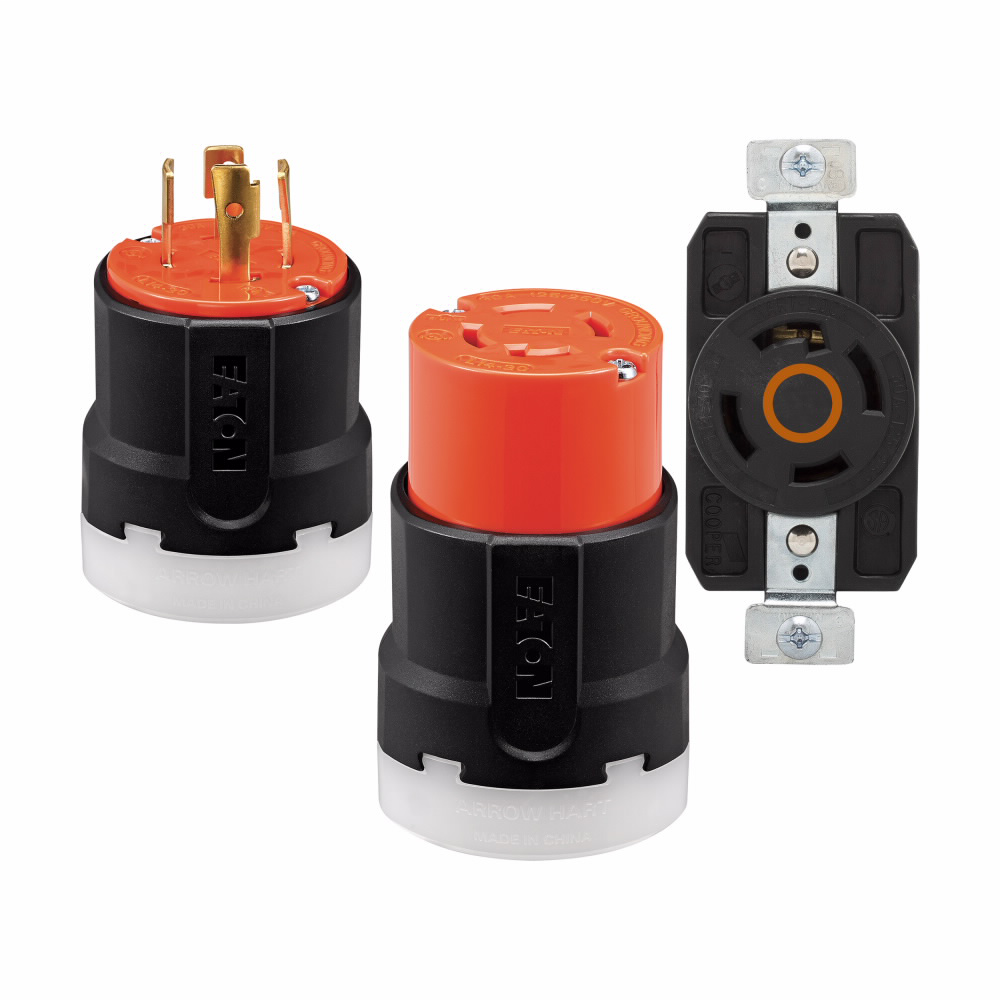

EWD AHCL1420C CCL Conn 20A 125/250V
35 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # AHCL1420C
Viking Electric Part # 341239

Specifications

  • Special Features: Voltage Color Coding
  • Color: Orange, Black
  • Face/Body Material: Nylon
  • Wiring Method: Back
  • Material: Nylon
  • Allowable Wire Size: #14-8 AWG
  • Amperage Rating: 20A
  • Number Of Poles: Three-pole
  • Type: Locking Connector
  • Nema Configuration: L14-20
  • Design Type: Ultra grip
  • Number Of Wires: Four-wire
  • Operating Temperature: -40°C (w/o impact) to 60°C (-40°F to 140°F)
  • Voltage Rating: 125/250 V
  • Cord Diameter: 0.38 - 1.16" (9.5 - 29.5mm)
  • Application: Industrial

General

  • UPC: 032664755712
  • Product Length/Depth: 2.13 IN
  • Product Height: 3.94 IN
  • Product Width: 2.3 IN
  • Product Weight: .49 LB
  • Warranty: Refer to warranty document.
  • Compliances: RoHS Compliant
  • Certifications: cULus Listed
> View Substitutes (1)

Categories

Overview

UPC 03266475571
Long Description Eaton Arrow Hart Color Coded Locking Connector, #14-8 AWG, 20A, Industrial, 125/250V, Back, Orange, Black, Ultra grip, Nylon, L14-20, Three-pole, Four-wire, Nylon, 0.38 - 1.16" (9.5 - 29.5mm), -40°C (w/o impact) to 60°C (-40°F to 140°F)
GTiN 00032664755712
Length 2.13 in
Color Orange/Black
Operating Temperature -40 C
Voltage 125/250 V
Type Color Coded, Ultra Grip
Material Nylon
Applications For Industrial Use
Height 3.94 in
Weight .49 lb
Family Brand Name Eaton
Amperage 20 Amp
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Eaton Wiring Devices
Size 0.38 - 1.16 in Cord dia
Conductor Size 14-8 AWG
Mounting Type Cord
Connection Type Back
Temperature Rating -40 to 60 C
Blade Dimensions 2.13 in L x 2.3 in W x 3.94 in H
