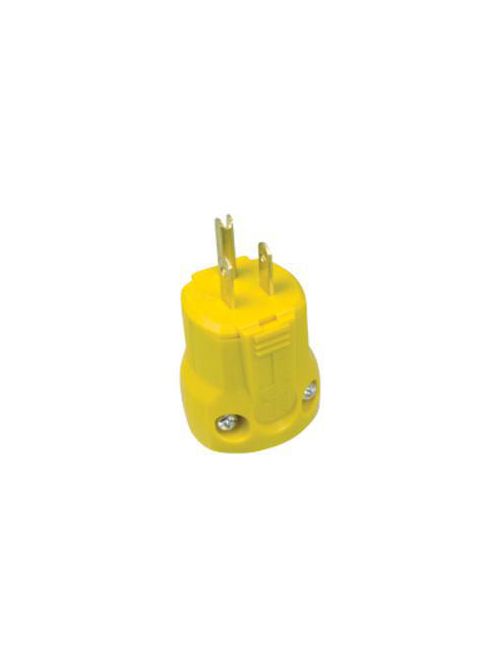

Arrow Hart Wiring AH5965Y 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15P Yellow Straight Blade Plug
55 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # AH5965Y
Viking Electric Part # 21861

Specifications

  • Special Features: Quick grip
  • Color: Yellow
  • Material: Nylon
  • Allowable Wire Size: #18 to #12 AWG
  • Amperage Rating: 15A
  • Number Of Poles: Two-pole
  • Contact Material: Brass
  • Nema Configuration: 5-15P
  • Design Type: Plug
  • Connection Type: Screw
  • Number Of Wires: Three-wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Cord Range: 0.22-0.66" in diameter
  • Voltage Rating: 125V

General

  • UPC: 032664722844
  • Product Length/Depth: 1.67 IN
  • Product Height: 1.46 IN
  • Product Width: 1.96 IN
  • Product Weight: .115 LB
  • Compliances: RoHS Compliant
  • Certifications: cULus Listed

Overview

UPC 03266472284
Long Description Industrial grade straight blade plug with quick grip straight body. Rugged nylon body resists impact and exposure to chemicals. Neoprene gasket seals around cord for added terminal protection from external elements. Dual range cord grip provides positive cord gripping while limiting strain on conductors. Clear terminal cover allows for easy inspection of conductors and terminations.
GTiN 00032664722844
Length 1.67 in
Color Yellow
Voltage 125 Volt
Type Heavy Duty Grade
Material Nylon
Conductor Size 18-10 AWG
Applications Straight Blade Devices
Height 1.46 in
Weight .115 lb
Family Brand Name Cooper Industries
Amperage 15 Amp
Cord Size 0.22 - 0.66 in
Environmental Conditions -40 to 75C
Number of Poles 2 Pole
Number of Wires 3
Sub Brand QuickGrip
Mounting Type Plug
Wire Size 18-10 AWG
Cord Range 0.22 - 0.66 in
Connection Type Screw
NEMA 5-15P
