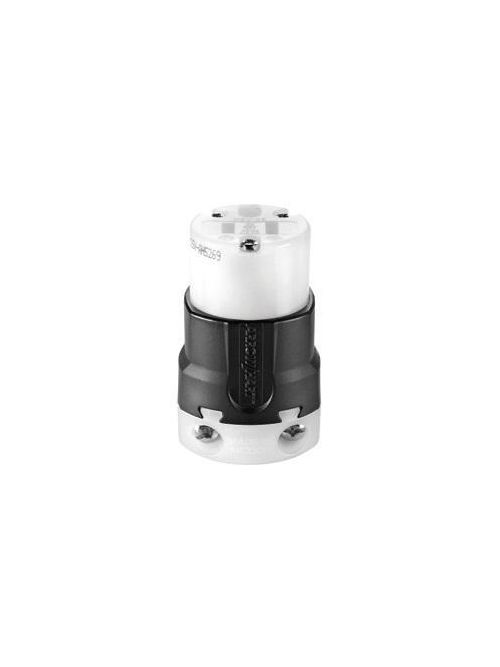

Arrow Hart Wiring AH5469 20 Amp 250 VAC 2-Pole 3-Wire NEMA 6-20R Black/White Straight Blade Connector
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
45 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # AH5469
Viking Electric Part # 21850

Specifications

  • Height: 2.1 IN
  • Length: 2.23 IN
  • Width: 2.59 IN
  • Weight: .195 LB
  • Special Features: Ultra grip
  • Allowable Wire Size: #16 - #12 AWG
  • Amperage Rating: 20A
  • Voltage Rating: 250V
  • Color: Black, white
  • Contact Material: Brass
  • Design Type: Connector
  • Nema Configuration: 6-20P
  • Number Of Poles: Two-pole
  • Number Of Wires: Three-wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Connection Type: Screw
  • Material: Nylon

Categories

Overview

UPC 03266473758
Long Description Eaton Arrow Hart ultra grip straight blade connector, #16 - #12 AWG, 20A, Industrial, 250V, Back wire, Black and white, Brass, Nylon, 6-20P, Two-pole, three-wire, grounding, Screw, 0.33-0.66", Nylon, Core pack
GTiN 00032664737589
Length 2.23 in
Width 2.59 in
Color Black,White
Voltage 250 Volt
Type Straight Blade
Material Nylon,Polycarbonate
Applications STRGHT BLADE PLG&CONNEC
Mounting Type Conn
Height 2.1 in
Weight .195 lb
Wire Size 18-10 AWG
Cord Range 0.33 - 0.66 in
Connection Type Screw
Family Brand Name Eaton
Receptacle Type Grounding
NEMA 6-20
Contact Material Brass
Amperage 20 Amp
Environmental Conditions -40 to 75 C
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
