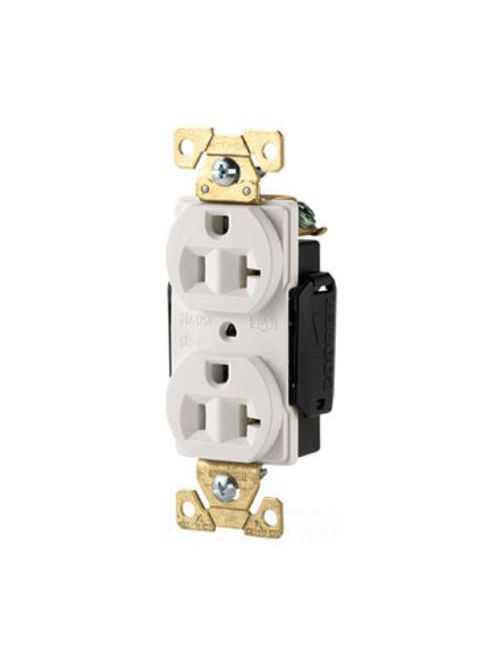

EWD AH5362W Recp Dup 20A125V 2P3W B
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
139 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # AH5362W
Viking Electric Part # 21842

Specifications

  • Height: 4.19 IN
  • Length: 1.32 IN
  • Width: .88 IN
  • Special Features: Terminal Guards
  • Type: Duplex
  • Allowable Wire Size: #14 to 10 AWG
  • Amperage Rating: 20A
  • Mounting Type: Flush
  • Voltage Rating: 125V
  • Wiring Method: Back and Side
  • Color: White
  • Contact Material: Brass
  • Design Type: Receptacle
  • Nema Configuration: 5-20R
  • Number Of Poles: Two-pole
  • Number Of Wires: Three-wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Style Type: Standard
  • Connection Type: Screw
  • Material: Nylon

Categories

Overview

UPC 03266470409
Long Description Eaton Arrow Hart extra heavy-duty industrial specification grade duplex receptacle, #14-10 AWG, 20A, Industrial, Flush, 125V, Back and Side, White, Brass, Nylon face, Glass-filled nylon base, 5-20R, Duplex, Screw, Nylon, Core pack
GTiN 00032664704093
Length 1.32 in
Width .88 in
Color White
Voltage 125 Volt
Type Duplex
Material Nylon
Applications INDUSTRIAL RECEPTACLES
Height 4.19 in
Weight .23 lb
Family Brand Name Eaton
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
Mounting Type Flush
Wire Size 14-10 AWG
Standard UL
Connection Type Screw
Base Material Glass-Filled Nylon
Face Material Nylon
Temperature Rating -20 To 70 C
NEMA 5-20R
Environmental Conditions See Spec Sheet
