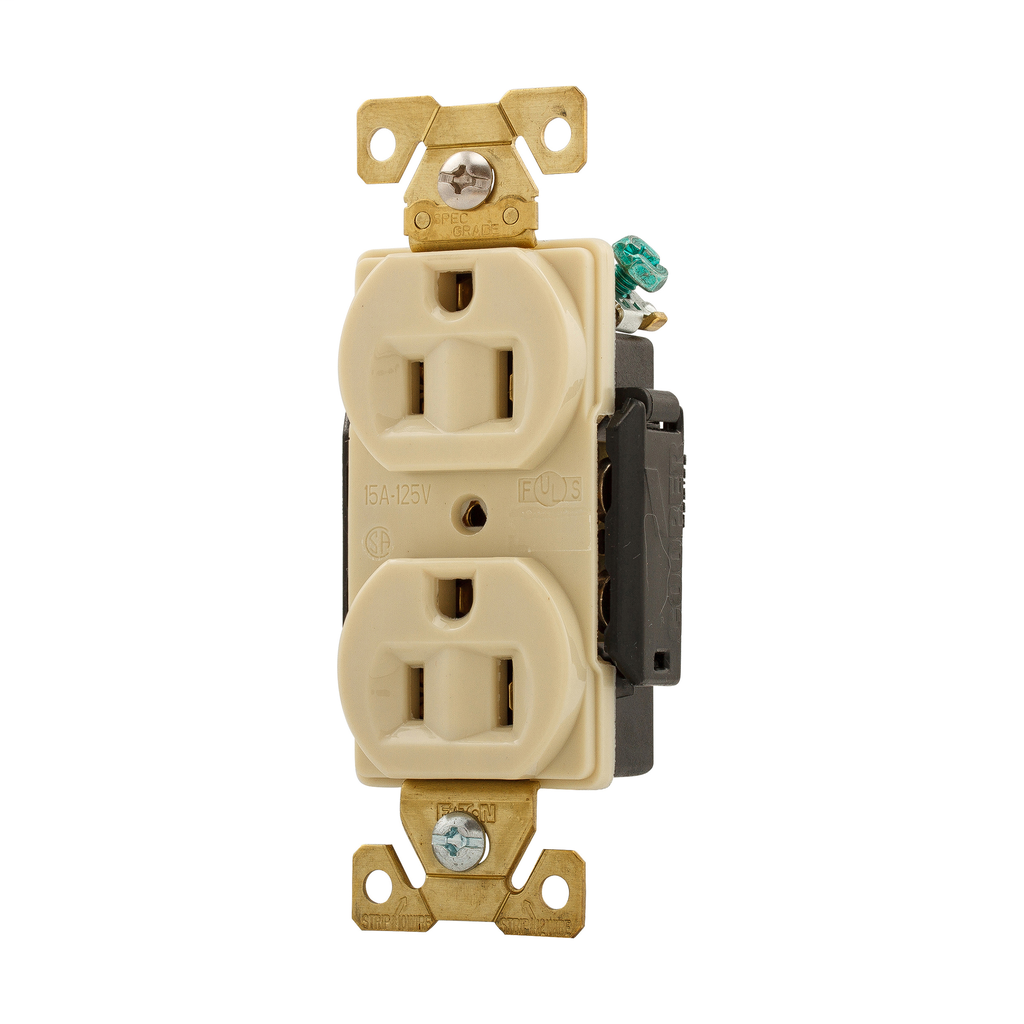

Arrow Hart Wiring AH5262V 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Ivory Straight Blade Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually available within 6 to 8 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # AH5262V
Viking Electric Part # 21828

Specifications

  • Height: 4.19 IN
  • Length: 1.32 IN
  • Width: .88 IN
  • Special Features: Terminal Guards, Auto-grounding
  • Type: Duplex
  • Allowable Wire Size: #14 to 10 AWG
  • Amperage Rating: 15A
  • Mounting Type: Flush
  • Voltage Rating: 125V
  • Wiring Method: Back and side
  • Color: Ivory
  • Contact Material: Brass
  • Design Type: Receptacle
  • Nema Configuration: 5-15R
  • Number Of Poles: Two-pole
  • Number Of Wires: Three-wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Style Type: Standard
  • Connection Type: Screw
  • Material: Nylon

Categories

Overview

UPC 03266470375
Long Description Eaton Arrow Hart extra heavy-duty industrial specification grade duplex receptacle, #14-10 AWG, 15A, Industrial, Flush, 125V, Back and side, Ivory, Brass, Nylon face, Glass-filled nylon base, 5-15R, Duplex, Screw, Nylon, Core pack
GTiN 00032664703751
Length 1.32 in
Width .88 in
Color Ivory
Voltage 125 Volt
Type Duplex
Insulation Type Glass Filled Nylon Base,Nylon Face
Material Nylon
Applications INDUSTRIAL RECEPTACLES
Mounting Type Flush
Height 4.19 in
Weight .35 lb
Wire Size 14-10 AWG
Standard UL
Connection Type Screw
Temperature Rating -20 To 70 C
Family Brand Name Eaton
Receptacle Type Grounding
NEMA 5-15R
Contact Material Brass
Amperage 15 Amp
Wiring Method Side,Back
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
