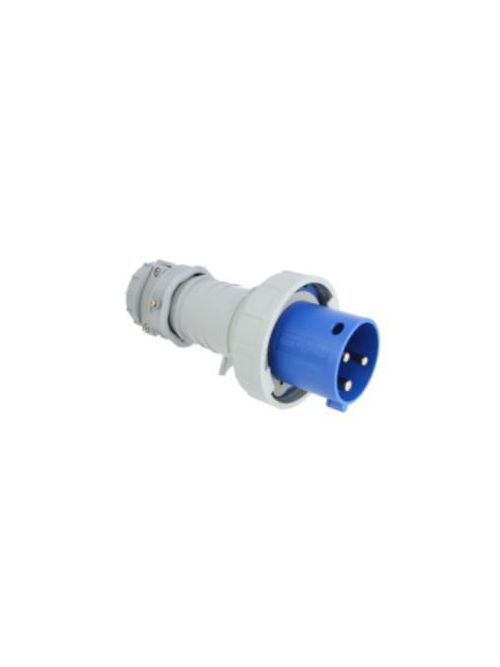

Arrow Hart Wiring AH460P9W 60 Amp 250 Volt 3-Phase 3-Pole 4-Wire Watertight IEC Pin and Sleeve Plug
Product image thumbnail 0
Product image thumbnail 1
9 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # AH460P9W
Viking Electric Part # 21815

Specifications

  • Phase: Three-phase
  • Color: Blue
  • Face/Body Material: Nylon
  • Material: Nylon
  • Gender: Male
  • Allowable Wire Size: #8-#2 AWG,#10-#2 AWG(Ground),#12-#16 AWG(Pilot)
  • Amperage Rating: 60A
  • Number Of Poles: Three-pole
  • Contact Material: Nickel-plated brass
  • Type: Plug
  • Horsepower: 7.50 hp
  • Design Type: Pin & Sleeve Plug
  • Environmental Resistance: IP67, IP69K
  • Number Of Wires: Four-wire, grounding
  • Voltage Rating: 250V
  • Cord Diameter: 0.66-1.5in (1.68-3.81cm)
  • Application: Industrial;Food and Beverage;Wastewater Treatment

General

  • UPC: 040893619842
  • Product Length/Depth: 11.5 IN
  • Product Height: 5.125 IN
  • Product Width: 5.125 IN
  • Product Weight: 1.96 LB
  • Warranty: Refer to warranty document.
  • Certifications: Contact Manufacturer

Categories

Overview

UPC 04089361984
Long Description PLUG PIN AND SLEEVE 60 AMP 250 VOLT 3 PHASE 3 POLE 4 WIRE WT BLUE
GTiN 00040893619842
Length 11.5 in
Size 11.5 x 5.125 x 5.125
Color Blue
Voltage 250 Volt
Type Plug
Material Nylon
Applications IEC 309 Products
Mounting Type Cable
Height 5.125 in
Weight 1.96 lb
Wire Size 0.66-1.5
Horsepower 7.5 hp
Family Brand Name Arrow Hart Wiring
Number of Phases 3 Phase
Tc Connection Pin & Sleeve
Actuator Lever
Amperage 60 Amp
Environmental Conditions IP67/IP69K
Number of Poles 3 Pole
Number of Wires 4
Sub Brand ArrowHart Series
