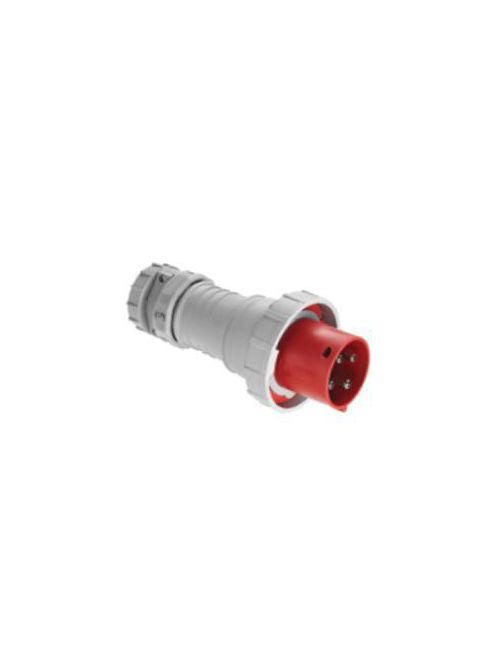

Arrow Hart Wiring AH4100P7W 100 Amp 480 VAC 3-Pole 4-Wire Red Watertight Pin and Sleeve Plug
9 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # AH4100P7W
Viking Electric Part # 21787

Specifications

  • Phase: Three-phase
  • Color: Red
  • Face/Body Material: Nylon
  • Material: Nylon
  • Gender: Male
  • Allowable Wire Size: #4 -1/0 AWG, #12 - #16 AWG (pilot)
  • Amperage Rating: 100A
  • Number Of Poles: Three-pole
  • Contact Material: Nickel-plated brass
  • Type: Plug
  • Horsepower: 20 hp
  • Design Type: Pin & Sleeve Plug
  • Environmental Resistance: IP67, IP69K
  • Number Of Wires: Four-wire, grounding
  • Voltage Rating: 480V
  • Cord Diameter: 0.97-1.94in (2.46-5.00cm)
  • Application: Industrial;Food and Beverage;Wastewater Treatment

General

  • UPC: 040893620848
  • Product Length/Depth: 13.375 IN
  • Product Height: 5.625 IN
  • Product Width: 5.5 IN
  • Product Weight: 3.15 LB
  • Warranty: Refer to warranty document.
  • Certifications: Contact Manufacturer

Categories

Overview

UPC 04089362084
Long Description PLUG PIN AND SLEEVE 100 AMP 480 VOLT 3 PHASE 3 POLE 4 WIRE WT RED
GTiN 00040893620848
Length 13.375 in
Size 13.375 x 5.5 x 5.625
Color Red
Voltage 480 Volt
Type Plug
Material Nylon
Applications IEC 309 Products
Mounting Type Cable
Height 5.625 in
Weight 3.15 lb
Wire Size 0.97-1.94
Horsepower 20 hp
Family Brand Name Arrow Hart Wiring
Number of Phases 3 Phase
Tc Connection Pin & Sleeve
Actuator Lever
Amperage 100 Amp
Number of Poles 3 Pole
Number of Wires 4
Sub Brand ArrowHart Series
