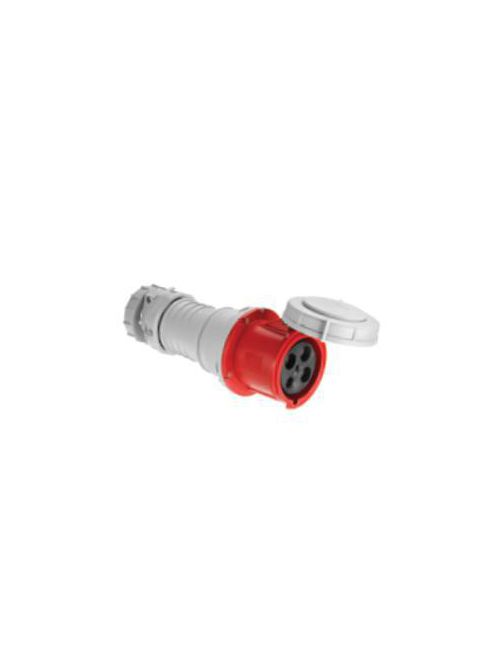

Arrow Hart Wiring AH4100C7W 100 Amp 480 VAC 3-Phase 3-Pole 4-Wire Red Watertight Pin and Sleeve Connector
Product image thumbnail 0
Product image thumbnail 1
7 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # AH4100C7W
Viking Electric Part # 21783

Specifications

  • Phase: Three-phase
  • Color: Red
  • Face/Body Material: Nylon
  • Material: Nylon
  • Gender: Female
  • Allowable Wire Size: #4 -1/0 AWG, #12 - #16 AWG (pilot)
  • Amperage Rating: 100A
  • Number Of Poles: Three-pole
  • Contact Material: Nickel-plated brass
  • Type: Connector
  • Horsepower: 20 hp
  • Design Type: Pin & Sleeve Connector
  • Environmental Resistance: IP67, IP69K
  • Number Of Wires: Four-wire, grounding
  • Voltage Rating: 480V
  • Cord Diameter: 0.97-1.94in (2.46-5.00cm)
  • Application: Industrial;Food and Beverage;Wastewater Treatment

General

  • UPC: 040893620510
  • Product Length/Depth: 13.375 IN
  • Product Height: 5.625 IN
  • Product Width: 5.5 IN
  • Product Weight: 3.48 LB
  • Warranty: Refer to warranty document.
  • Certifications: Contact Manufacturer

Categories

Overview

UPC 04089362051
Long Description CONNECTOR PIN AND SLEEVE 100 AMP 480 VOLT 3 PHASE 3 POLE 4 WIRE WT RED
GTiN 00040893620510
Length 13.375 in
Size 13.375 x 5.5 x 5.625
Color Red
Voltage 480 Volt
Type Connector
Material Nylon
Applications IEC 309 Products
Weight 3.48 lb
Wire Size 0.97-1.94
Horsepower 20 hp
Family Brand Name Arrow Hart Wiring
Tc Connection Pin & Sleeve
Amperage 100 Amp
Number of Poles 3 Pole
Number of Wires 4
Sub Brand ArrowHart Series
Mounting Type Cable
Number of Phases 3 Phase
Environmental Conditions IP67/IP69K
