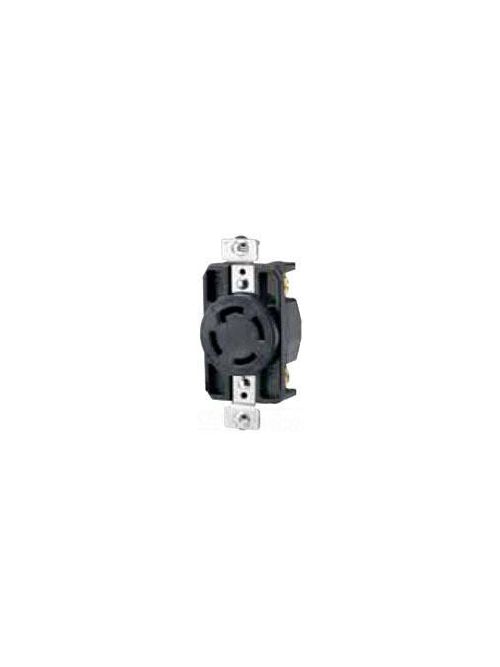

Eaton Wiring Devices 3430 30 Amp 120/208 VAC 4-Pole 4-Wire Black Non-NEMA Locking Single Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually available within 6 to 8 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # AH3430
Viking Electric Part # 21773

Specifications

  • Special Features: Locking flanged inlet
  • Color: Black
  • Face/Body Material: Glass filled Nylon
  • Wiring Method: Back and side
  • Material: Glass-filled nylon
  • Allowable Wire Size: #14-8 AWG
  • Amperage Rating: 30A
  • Number Of Poles: Four-pole
  • Contact Material: Brass
  • Type: Locking receptacle
  • Device Grade: Extra heavy duty industrial specification grade
  • Nema Configuration: Non-NEMA
  • Design Type: Single receptacle
  • Number Of Wires: Four-wire, non-grounding
  • Receptacle Type: Single
  • Operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Voltage Rating: 3ØY 120/208 V
  • Application: Industrial

General

  • UPC: 040893681498
  • Product Length/Depth: 1.79 IN
  • Product Height: 4.45 IN
  • Product Width: 1.93 IN
  • Product Weight: .4 LB
  • Compliances: RoHS Compliant
  • Certifications: cULus Listed

Categories

Overview

UPC 04089368149
Long Description Eaton locking receptacle, #14-8 AWG, 30A, Industrial, 120/208V, Back and side wiring, Black, Single, Non-NEMA, Four-pole, Four-wire, Glass-filled nylon
GTiN 00040893681498
Length 1.79 in
Width 1.93 in
Color Black
Operating Temperature -40 To 140 F
Voltage 120/208 Volt
Type Locking Receptacle
Material Glass-filled Nylon
Applications LOCKING DEVICES
Height 4.45 in
Weight .4 lb
Wire Size 14-8 AWG
Connection Type Screw
Family Brand Name Eaton
Number of Phases 3 Phase
Amperage 30 Amp
Number of Poles 4 Pole
Number of Wires 4
Sub Brand Eaton Wiring Devices
