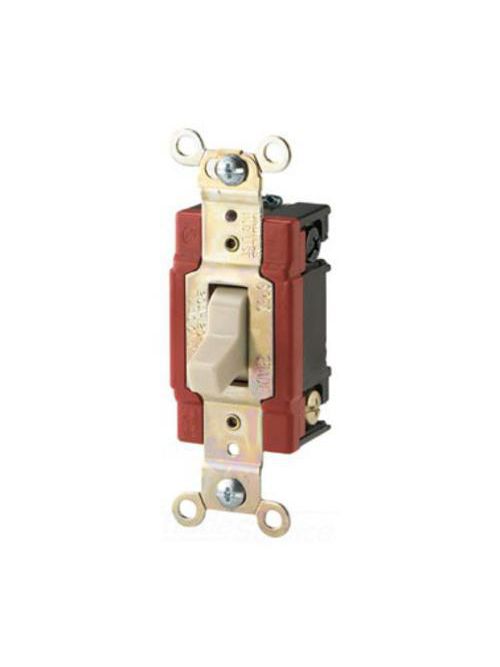

EWD AH1223RD SW Tog 3Way 20A 120/27
7 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # AH1223RD
Viking Electric Part # 21736

Specifications

  • Connector Type: Screw
  • Switch Type: Three-way
  • Terminal Enclosure Material T: Brass
  • Mounting Type: Wall
  • Color: Red
  • Wiring Method: Back and side
  • Material: Polycarbonate
  • Allowable Wire Size: #14-10 AWG
  • Amperage Rating: 20A
  • Number Of Poles: Single-pole
  • Type: Toggle switch
  • Number of Ways: Three-Way
  • Terminals: 0.031 in
  • Voltage Rating: 120/277 V
  • Application: Industrial

General

  • UPC: 032664734847
  • Product Length/Depth: 1.3 IN
  • Product Height: 4.19 IN
  • Product Width: 1.005 IN
  • Product Weight: .37 LB
  • Compliances: NAFTA
  • Certifications: cULus Listed

Overview

UPC 03266473484
Long Description Eaton Arrow Hart industrial grade toggle switch, #14-10 AWG, 20A, Industrial, Wall, 120/277V, Back and side, Screw, Red, Three-Way, Brass, Terminals: 0.031 in, Polycarbonate
GTiN 00032664734847
Length 1.3 in
Width 1.005 in
Color Red
Operating Temperature -20 to 60 C
Voltage 120/277 Volt
Type Toggle Switch
Material Polycarbonate
Terminal Type 0.031 In
Applications NON-RESI SWITCHES
Mounting Type Wall
Height 4.19 in
Weight .37 lb
Connection Type Screw
Family Brand Name Eaton
Actuator Toggle
Contact Configuration Switches
Amperage 20 Amp
Number of Poles 1
Sub Brand Eaton Wiring Devices
