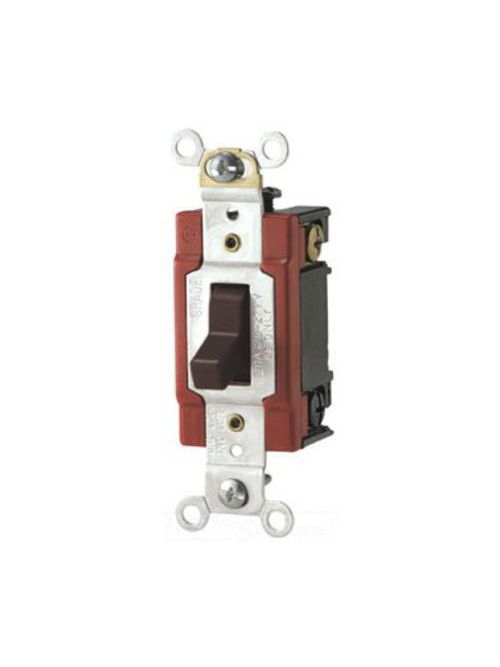

Arrow Hart Wiring AH1223B 20 Amp 120/277 VAC 3-Way Brown Toggle Switch
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
24 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # AH1223B
Viking Electric Part # 21729

Specifications

  • Connector Type: Screw
  • Switch Type: Three-way
  • Terminal Enclosure Material T: Brass
  • Mounting Type: Wall
  • Color: Brown
  • Wiring Method: Back and side
  • Material: Polycarbonate
  • Allowable Wire Size: #14-10 AWG
  • Amperage Rating: 20A
  • Number Of Poles: Single-pole
  • Type: Toggle switch
  • Number of Ways: Three-Way
  • Terminals: 0.031 in
  • Voltage Rating: 120/277 V
  • Application: Industrial

General

  • UPC: 032664734779
  • Product Length/Depth: 1.3 IN
  • Product Height: 4.19 IN
  • Product Width: 1.005 IN
  • Product Weight: .2 LB
  • Compliances: NAFTA
  • Certifications: cULus Listed

Categories

Overview

UPC 03266473477
Long Description Eaton Arrow Hart industrial grade toggle switch, #14-10 AWG, 20A, Industrial, Wall, 120/277V, Back and side wiring, Screw, Brown, Three-Way, Brass, Terminals: 0.031 in, Polycarbonate
GTiN 00032664734779
Length 1.3 in
Width 1.005 in
Color Brown
Operating Temperature -20 to 60 C
Voltage 120/277 Volt
Type Toggle Switch
Material Polycarbonate
Terminal Type 0.031 In
Connector Type Screw
Applications NON-RESI SWITCHES
Mounting Type Wall
Height 4.19 in
Weight .2 lb
Wire Size 14-10 AWG
Connection Type Screw
Switch Type Three-way
Family Brand Name Eaton
Actuator Toggle
Contact Configuration Switches
Amperage 20 Amp
Wiring Method Back,Side
Enclosure Material Brass
Sub Brand Eaton Wiring Devices
