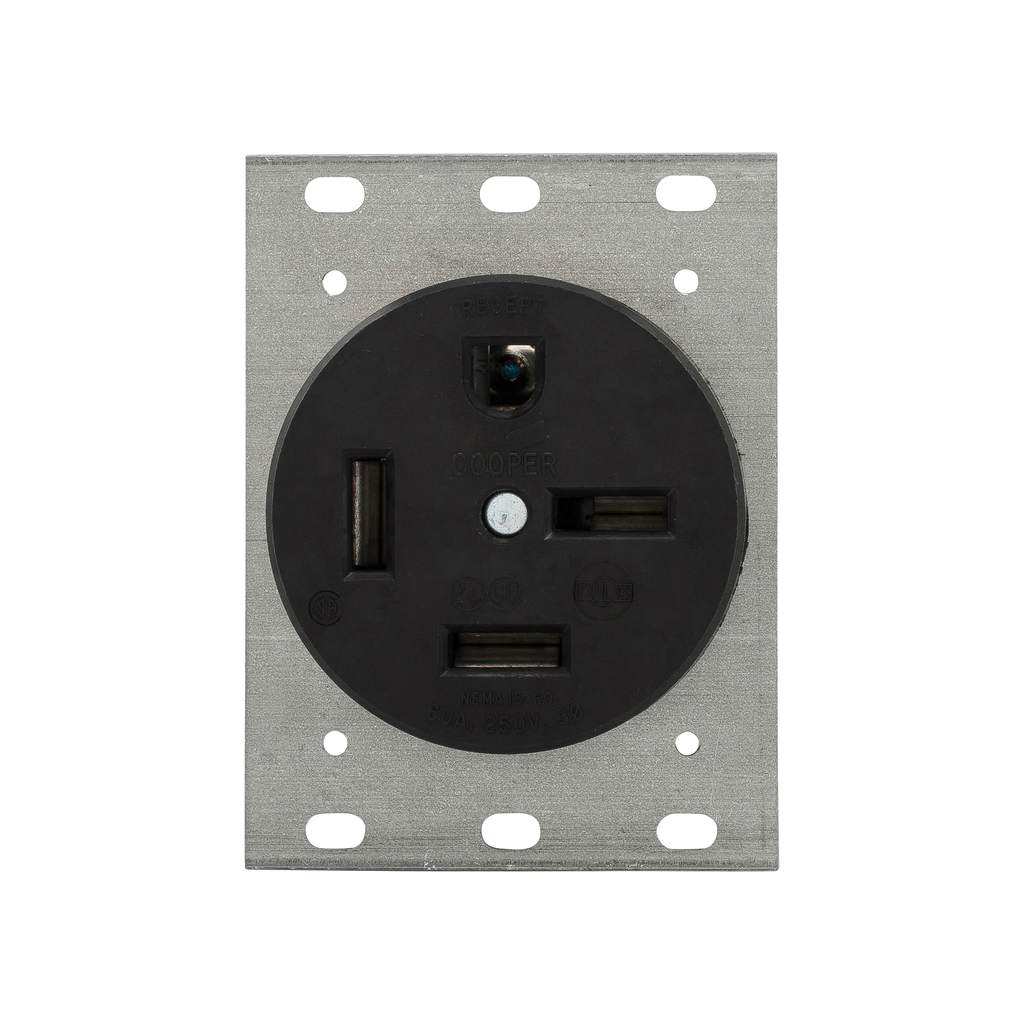

EWD 8460N Recp Single 60A 250V 3PH
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually available within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # 8460N
Viking Electric Part # 16467

Specifications

  • Height: 2.38 IN
  • Length: 3.25 IN
  • Width: 2.94 IN
  • Weight: .5 LB
  • Allowable Wire Size: #14 to 10 AWG
  • Amperage Rating: 60A
  • Mounting Type: Flush
  • Voltage Rating: 250V
  • Wiring Method: Back and side
  • Color: Black
  • Design Type: Receptacle
  • Nema Configuration: 15-60R
  • Number Of Poles: Three-pole
  • Number Of Wires: Four-wire
  • Receptacle Type: Three-pole, four-wire, grounding
  • Connection Type: Screw
  • Material: Glass-filled nylon
  • Phase: Three-phase
  • Style: Power

Overview

UPC 04089301869
Long Description Eaton power device receptacle, #14 to 10 AWG, 60A, Flush, 250V, Back and side, Black, NEMA 15-60R, Three-pole, Four-wire, Three-pole, four-wire, grounding, Screw, Glass-filled nylon, Three-phase, Power
GTiN 00040893018690
Length 3.25 in
Width 2.94 in
Color Black
Voltage 250 Volt
Type Commercial
Material Glass-filled Nylon
Applications NON-RESI RECEPTACLE
Height 2.38 in
Weight .5 lb
Family Brand Name Eaton
Number of Phases 3 Phase
Amperage 60 Amp
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Eaton Wiring Devices
