Arrow Hart Wiring 8410W 20 Amp 250 VAC 2-Pole 3-Wire NEMA 6-20R White Straight Blade Single Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
4 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
ea
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # 8410W
Viking Electric Part # 16418

Specifications

  • Special Features: Auto-grounding, screw-catch
  • Mounting Type: Flush
  • Color: White
  • Device Type: Receptacle
  • Face/Body Material: High-impact nylon
  • Wiring Method: Back and side
  • Material: Glass-filled nylon
  • Allowable Wire Size: #14-10 AWG
  • Amperage Rating: 20A
  • Number Of Poles: Two-pole
  • Contact Material: Brass
  • Device Grade: Extra heavy duty hospital grade
  • Nema Configuration: 6-20R
  • Style Type: Standard
  • Design Type: Straight blade
  • Connection Type: Screw
  • Number Of Wires: Three-wire
  • Receptacle Type: Single
  • Voltage Rating: 250V
  • Application: Industrial

General

  • UPC: 032664190704

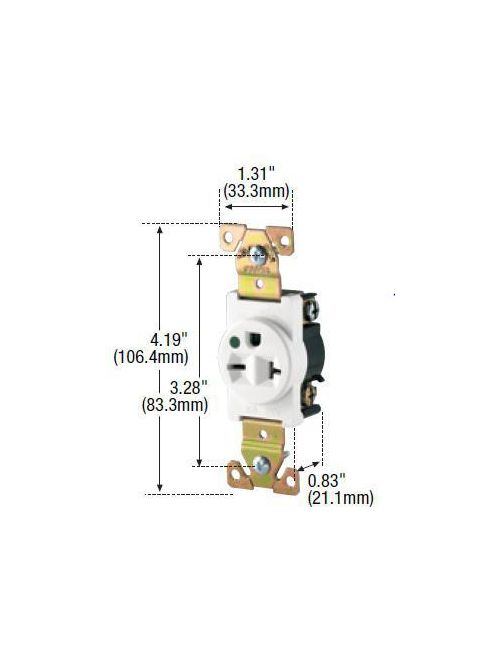

  • Product Length/Depth: 1.3 IN
  • Product Height: 4.19 IN
  • Product Width: .87 IN
  • Product Weight: .1 LB
  • Warranty: Refer to warranty document.
  • Certifications: UL

Categories

Overview

UPC 03266419070
Long Description Eaton Arrow Hart extra heavy-duty hospital grade single receptacle, #14-10 AWG, 20A, Healthcare, Flush, 250V, Back and side, White, Brass, High-impact nylon, 6-20R, Single, Screw, Glass-filled nylon, Core pack
GTiN 00032664190704
Length 1.3 in
Width .87 in
Color White
Voltage 250 Volt
Type Single,Straight Blade
Material Glass-filled Nylon
Applications INDUSTRIAL RECEPTACLES
Height 4.19 in
Weight .1 lb
Wire Size 14-10 AWG
Connection Type Screw
Family Brand Name Eaton
NEMA 6-20R
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
