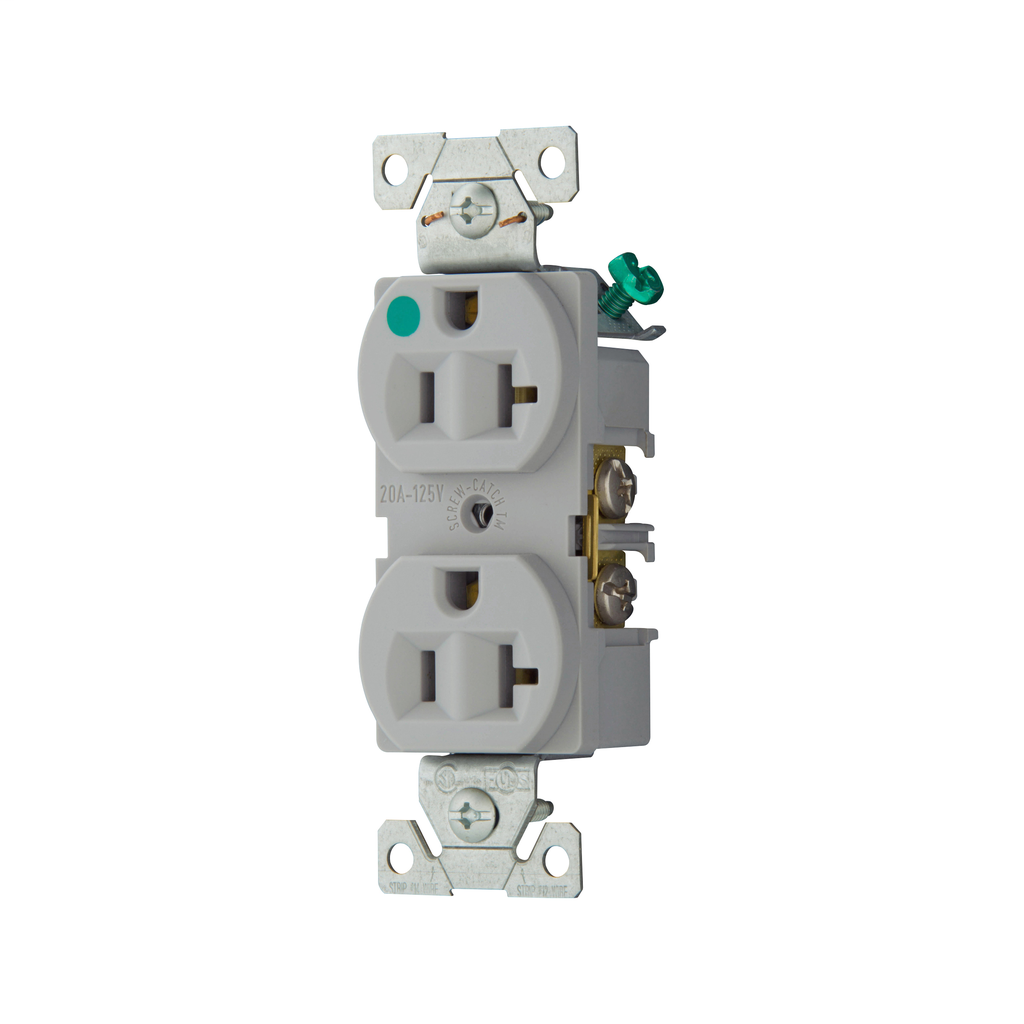

Arrow Hart Wiring 8300GY 20 Amp 125 VAC 2-Pole 3-Wire NEMA 5-20R Gray Straight Blade Duplex Receptacle
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Product image thumbnail 3
Usually available within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # 8300GY
Viking Electric Part # 16345

Specifications

  • Special Features: Auto-grounding, screw-catch
  • Mounting Type: Flush
  • Color: Gray
  • Device Type: Receptacle
  • Face/Body Material: High-impact nylon face, PVC base
  • Wiring Method: Back and side
  • Material: Nylon, PVC
  • Allowable Wire Size: #14-10 AWG
  • Amperage Rating: 20A
  • Number Of Poles: Two-pole
  • Contact Material: Brass
  • Type: Duplex
  • Device Grade: Heavy duty hospital grade
  • Nema Configuration: 5-20R
  • Style Type: Standard
  • Design Type: Straight blade
  • Connection Type: Screw
  • Number Of Wires: Three-wire
  • Receptacle Type: Duplex
  • Voltage Rating: 125V
  • Application: Industrial

General

  • UPC: 032664705533
  • Product Length/Depth: 1.3 IN
  • Product Height: 4.19 IN
  • Product Width: .88 IN
  • Product Weight: .208 LB
  • Warranty: Refer to warranty document.
  • Certifications: UL

Categories

Overview

UPC 03266470553
Long Description Eaton Arrow Hart heavy-duty hospital grade duplex receptacle, #14-10 AWG, 20A, Healthcare, Flush, 125V, Back and side, Gray, Brass, High-impact nylon face, PVC base, 5-20R, Duplex, Screw, Nylon, PVC
GTiN 00032664705533
Length 1.3 in
Width .88 in
Color Gray
Voltage 125 Volt
Type Duplex
Material Nylon, PVC
Applications INDUSTRIAL RECEPTACLES
Height 4.19 in
Weight .208 lb
Family Brand Name Eaton
Amperage 20 Amp
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
Size 0
Insulation Type Nylon
Mounting Type Wall
Wire Size 14-10 AWG
Connection Type Screw
Temperature Rating -20 To 90 C
NEMA 5-20R
