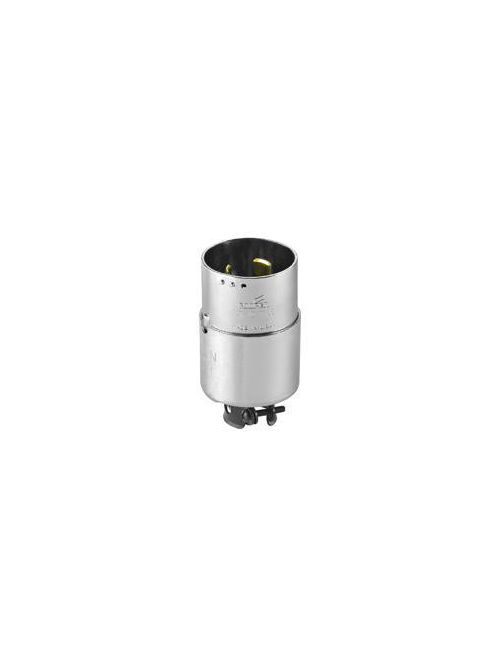

Arrow Hart Wiring 7764 600 VAC/250 VDC 50 Amp 3-Pole 4-Wire Hydro-Line Connector
1 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # 7764
Viking Electric Part # 66971

Specifications

  • Special Features: Armored
  • Color: Steel
  • Face/Body Material: Glass filled Nylon
  • Wiring Method: Back
  • Material: Stainless steel
  • Allowable Wire Size: #10-6 AWG
  • Amperage Rating: 50A
  • Number Of Poles: Three-pole
  • Contact Material: Zinc plated brass
  • Type: Locking connector
  • Device Grade: Extra Heavy-Duty
  • Nema Configuration: Non-NEMA
  • Design Type: Armored
  • Number Of Wires: Four-wire, grounding
  • Operating Temperature: -40°C to 90°C (-40°F to 194°F)
  • Voltage Rating: 600 Vac, 250 Vdc
  • Cord Diameter: 0.68-1.33 in (17.3-28.6mm)
  • Application: Industrial

General

  • UPC: 040893681573
  • Product Length/Depth: 5.73 IN
  • Product Height: 2.68 IN
  • Product Width: 3.1 IN
  • Product Weight: 1.2 LB
  • Warranty: Refer to warranty document.
  • Certifications: CSA certified

Overview

UPC 04089368157
Long Description Eaton locking connector, #10-6 AWG, 50A, Industrial, 600 Vac, 250Vdc, Back wiring, Steel, Armored, Non-NEMA, Three-pole, Four-wire, Steel, 0.68 to 1.13 in
GTiN 00040893681573
Length 5.73 in
Width 3.1 in
Color Steel
Operating Temperature -40 To 194 F
Voltage 250 Volt
Type Locking Connector
Material Stainless Steel
Applications LOCKING DEVICES
Height 2.68 in
Weight 1.2 lb
Wire Size 10-6 AWG
Connection Type Screw
Family Brand Name Eaton
Amperage 50 Amp
Number of Poles 3 Pole
Number of Wires 4
Sub Brand Eaton Wiring Devices
