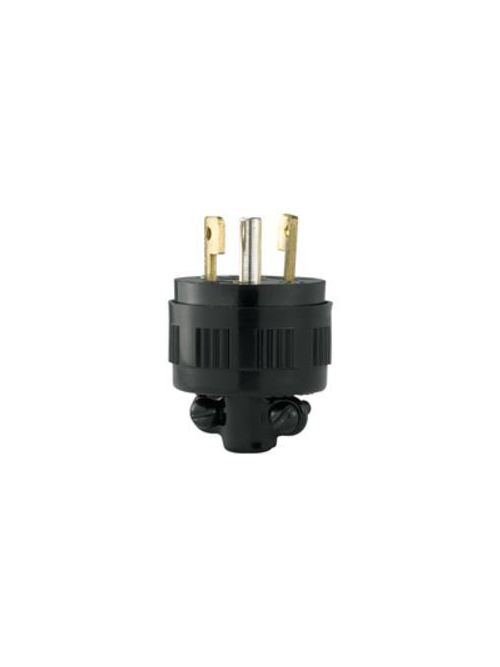

EWD 7485 Plug Midg 15A125/250V3P3W
Product image thumbnail 0
Product image thumbnail 1
Product image thumbnail 2
Usually available within 11 to 17 Days
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # 7485
Viking Electric Part # 15676

Specifications

  • Special Features: Midget locking
  • Color: Black
  • Face/Body Material: Nylon and phenolic
  • Wiring Method: Side
  • Material: Phenolic
  • Allowable Wire Size: #16-12 AWG
  • Amperage Rating: 15A
  • Number Of Poles: Three-pole
  • Contact Material: Brass
  • Type: Locking plug
  • Device Grade: Heavy duty specification grade
  • Nema Configuration: ML3
  • Design Type: Midget locking plug
  • Number Of Wires: Three-wire, non-grounding
  • Operating Temperature: -40°C to 95°C (-40°F to 203°F)
  • Voltage Rating: 125/250 V
  • Cord Diameter: 0.28-0.42 in (7.1-10.7mm)
  • Application: Industrial

General

  • UPC: 040893031880
  • Product Length/Depth: 6.94 IN
  • Product Height: 3.38 IN
  • Product Width: 3.61 IN
  • Product Weight: 1.05 LB
  • Warranty: Refer to warranty document.
  • Compliances: RoHS Compliant
  • Certifications: cULus Listed

Overview

UPC 04089303188
Long Description Eaton safety grip locking plug, #16-12 AWG, 15A, Industrial, 125/250V, Side wiring, Black, Midget, ML3, Three-pole, Three-wire, Phenolic
GTiN 00040893031880
Length 6.94 in
Width 3.61 in
Color Black
Operating Temperature -40 To 203 F
Voltage 125/250 Volt
Type Locking Plug
Material Phenolic
Applications LOCKING DEVICES
Height 3.38 in
Weight 1.05 lb
Wire Size 16-12 AWG
Cord Range 0.28 - 0.42 in
Connection Type Screw
Family Brand Name Eaton
NEMA ML-3
Amperage 15 Amp
Wiring Method Side
Number of Poles 3 Pole
Number of Wires 3
Sub Brand Eaton Wiring Devices
