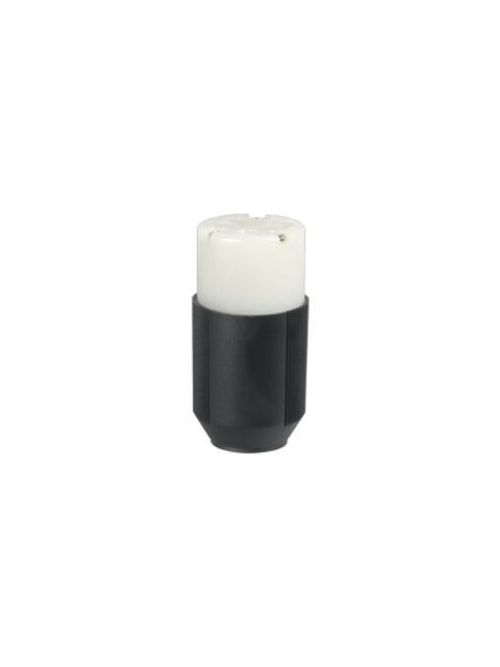

EWD 5666N Plug 15A 250V 2P3W Str Au
3 Available for Delivery
Order by for Delivery
Usually available for pickup within 24 Hours
Adding...
Already a Customer? Log in to view your pricing
Manufacturer Arrow Hart
Mfg Catalog # 5666N
Viking Electric Part # 11909

Specifications

  • Special Features: AutoGrip
  • Color: Black and white
  • Device Type: Plug
  • Face/Body Material: Nylon
  • Wiring Method: Back wire
  • Material: Nylon
  • Allowable Wire Size: #18-12 AWG
  • Amperage Rating: 15A
  • Number Of Poles: Two-pole
  • Contact Material: Brass
  • Device Grade: Industrial specification
  • Nema Configuration: 6-15P
  • Style Type: Straight body
  • Design Type: Straight blade
  • Connection Type: Screw
  • Number Of Wires: Three-wire
  • Receptacle Type: Two-pole, three-wire, grounding
  • Voltage Rating: 250V
  • Application: Industrial

General

  • UPC: 040893021553
  • Product Length/Depth: 1.91 IN
  • Product Height: 4.13 IN
  • Product Width: 1.78 IN
  • Product Weight: .181 LB
  • Warranty: Refer to warranty document.
  • Compliances: RoHS Compliant
  • Certifications: UL

Overview

UPC 04089302155
Long Description Eaton Arrow Hart auto grip straight blade plug, #18-12 AWG, 15A, Industrial, 250V, Back wire, Black and white, Brass, Nylon, 6-15P, Two-pole, three-wire, grounding, Screw, 0.33-0.66", Nylon, Core pack
GTiN 00040893021553
Length 1.91 in
Color Black,White
Voltage 250 Volt
Type Industrial Grade, Auto Grip
Material Nylon
Applications STRGHT BLADE PLG&CONNEC
Height 4.13 in
Weight .181 lb
Wire Size 18-12 AWG
Cord Range 0.33 - 0.66 in
Connection Type Screw
Family Brand Name Eaton
NEMA 6-15P
Amperage 15 Amp
Environmental Conditions -40 To 75 C
Number of Poles 2 Pole
Number of Wires 3
Sub Brand Arrow Hart
Conductor Size 18-12 AWG
Temperature Rating -40 to 75 C
Contact Material Brass
Blade Dimensions 1.91 in L x 1.78 in W x 4.13 in H
Cord Size 0.33 - 0.66 in
